    Sonder Transmitter

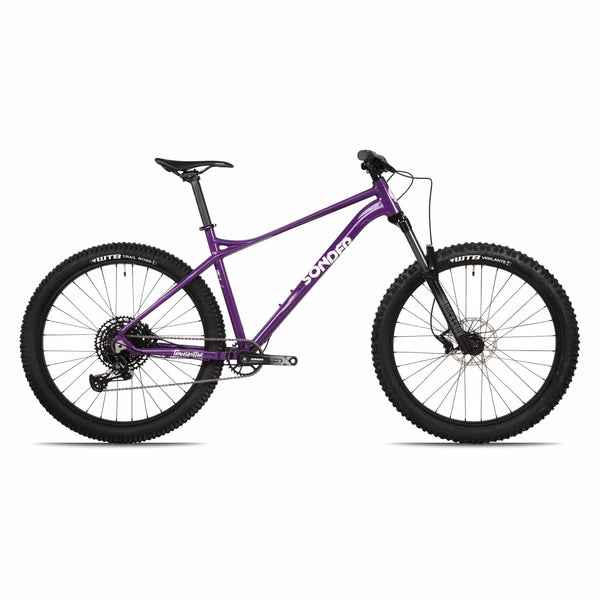

    Transmitter GX Eagle AXSAggressive 27.5" hardtail

    €3.099 €3.649

    Aggressive 27.5" hardtail that holds the lairiest lines. SRAM GX Eagle AXS 1x12 groupset, Rockshox Lryik Ultimate RC2 fork and Sonder Alpha 27.5" wheels.
    Built to Order. Be Riding 1 July.

    1

    Select Options

    • Size
      Please select an available Size
    • Colour
      • Transmitter Frame
      • Transmitter Frame
      • Transmitter Frame
      Please select an available Colour

    • Size:

    • Colour:

    Ultra-capable 27.5" hardtail - fast, lively and precise. Cut trails like a scalpel. Transmitter flows across cambers, roots, rocks and ruts. Get speed, agility and masses of fun with a long wheelbase, long trail and long reach. Then ask why anyone buys full suspension.



    At a glance

    • SRAM GX Eagle AXS 12-speed groupset
    • Rockshox Lryik Ultimate RC2
    • Sonder Alpha 27.5" wheelset
    • X-Fusion Manic dropper seatpost

    GX Eagle AXS

    GX Eagle AXS combines the proven GX Eagle groupset with SRAM®’s wireless shifting technology. Customisable via SRAM®’s AXS smartphone app, it shifts precisely and instantly every time, eliminating cable stretch completely. It also leaves your bars nice and clean!

    Sitting in the middle of SRAM®’s groupset hierarchy, GX Eagle AXS is the best groupset most of us would ever need, using a 12-speed 10-52 tooth cassette.

    Sonder Alpha 27.5"

    Alphas are our performance 27.5" wheelset for big hits and big tyres. Whether you're riding down Top Chief at Fort William or riding the black routes at Bike Park Wales, Alphas will consistently spin up to speed and keep rolling to help you ride with fluid precision over the trails.

    Alpha's have a boost hub for strength and stiffness and wide rims to improve tyre performance. They're built for abuse with sealed bearings and are tubeless ready.

    Features

    Progressive geometry

    Long reach, low bottom bracket and slack 65° head angle for bucket loads of confidence. 425mm short chainstays for agility and insane acceleration out of turns.

    Hand welded 6061-T6 triple butted frameset

    Not all tubes are equal. Transmitter uses tube walls of different thicknesses to get material where it is needed and save weight where it isn’t.

    Internal cable routing

    Clean lines and tidy cables thanks to fully guided internal routing.

    Huge tyres. Endless grip.

    27.5" 2.6/2.8" tyres. Designed around Boost 148/110 standards.

    Features built for trails

    Compatible with a dropper seatpost so even the most sheepish riders can tackle those steep sections head on like a pro. ​Transmitter can aslo be fitted with a chain guide. (ISCG 05 compatible).

    Loads of travel

    150mm of suspension floats you over the roughest and rootiest lines.

    Build Spec
    Frameset
    Frame:Transmitter Frame | 6061 aluminium
    Fork:RockShox Lyrik Ultimate RC2 | 150mm (travel)
    Headset:FSA Orbit C-40-ACB
    Groupset
    Shifters:SRAM AXS POD Shifter
    Brakes:SRAM Motive Bronze Brake | Hydraulic | Post Mount
    Rotors:SRAM Centerline | 180mm (front), 160mm (rear) | 6-bolt
    Rear derailleur:SRAM GX Eagle AXS | Long cage | 12-speed
    Chainset:SRAM GX Eagle DUB | 170mm | 32t
    Cassette:SRAM XG1275 Eagle | 10-52t | 12-speed
    Chain:SRAM GX Eagle | 12-speed
    Bottom bracket:SRAM DUB | BSA | 73mm
    Wheelset
    Wheels:Sonder Alpha 27.5" UK Made
    Tyres:Schwalbe Nobby Nic Evo Super Trail SpeedGrip TLE | 27.5x2.6 | Black
    Tubes:WTB | 27.5 x 2.4-2.8"
    Finishing kit
    Handlebars:Sonder Aspect Riser | 780mm
    Stem:Sonder Piskie
    Seatpost:X-Fusion Manic | 31.6mm
    Saddle:Sonder Abode
    Grips:Sonder Clutch | Black
    Weight
    Frame:S: 2.1kg; M: 2.2kg; L: 2.25kg; XL: 2.3kg;
    Build:S: TBC M: TBC L: TBC XL: TBC
    Pedals not included with full builds
    Specifications are subject to change without notice
    Geometry and Sizing

    Sizing

    It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    Generally we recommend:
    Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
    Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
    Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
    X-Large: Riders of 6ft 2in + (187cm)

    Transmitter

    SizeSmallMediumLargeX-Large
    ST - Seat tube410440470485
    TT - Top tube580.5602.9622.9646.5
    HT - Head tube105115115130
    HA - Head angle65656565
    SA - Seat angle75757575
    CS - Chainstay425425427.5430
    BB - BB drop52525252
    FO - Fork offset46464646
    WB - Wheelbase1141.21165.511881216.8
    SO - Stand over749.7768.4782.6796.6
    RE - Reach422.5442.5462.5482.5
    SK - Stack589.4598.4598.4612
    Frame Spec
    Weight: S: 2.0kg; M: 2.03kg; L: 2.07kg; XL: 2.1kg
    Alloy trail frame with integrated tapered headset for a clean, low front end
    Hand welded 6061-T6 triple butted frameset
    High-quality extended welds
    Optimised for 150 mm (540 mm axle to crown) suspension forks
    Internally routed cables
    Boost 148 rear spacing to allow huge tyre clearance while benefitting from a stronger wheel
    Threaded 73 mm BSA BB shell for no-creak assembly
    Chainstay mounted disc brake for clean lines and damage protection
    Reverb Stealth port
    EN 14766 compliant
    The Transmitter frame is suited to a low profile 2.8” tyre or aggressive 2.6” tyres, some larger 2.8”s may rub the chainstays in use

    Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on +44 1773 417006.
