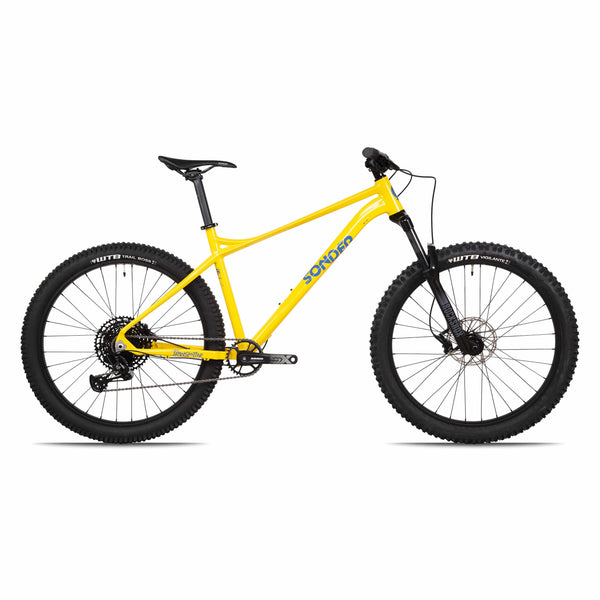

The signature flattened top tube gives vertical compliance but lateral stiffness - it really is an all mountain bike. That long wheelbase combined with the slack front end, size specific chainstays and a lowered BB give stability and control through the rowdiest of terrain.
Transmitter is designed around Boost 148/110 standards and 27.5" 2.6/2.8" tyres, and optimised for 1x groupsets. The geometry and extra grip from those big tyres means even the most sheepish rider will tackle those steep sections, up and down, like a pro.
Transmitter frames now feature internal cable routing through the downtube, integrated headsets, through-axle hubs, refined dropouts, butted tubes and smooth welds (and 3 shiny new colours).
Transmitter is a bike that just fits in with hard riding. This new version is still the fun trail bike it’s always been, and will still be a perfect partner for multi-day epics or short and fast trail centre blasts, but the changes we’ve made have raised the Transmitter’s limits, so you’ll be able to push the bike harder than ever before!
At A Glance
- Fast, agile trail centre and big mountain aggressive hard tail.
- Frame: Sonder Transmitter, hand-welded 6061-T6 triple butted frameset; vertically compliant laterally stiff tubing.
- Drivetrain: Shimano Deore / 1 x 12 / 10-51
- Brakes: Shimano Deore
- Forks: Rockshox Recon / 27.5 / 150mm
- Seatpost: X-Fusion Manic Drop Seatpost and Lever / 31.6mm / 150mm
- Wheelset: Sonder Nova 27.5+ Wheelset / Shimano
- Tyres: WTB Vigilante / Comp / 2.8 (front) and WTB Trail Boss / Comp / 2.6 (rear)
Why Deore..Read more
Shimano drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Shimano's new microspline hub means that you can run a 10 tooth cassette for a huge gear range. The new EV shifters and brakes provide loads of adjustment to get the perfect position as well as a rock-solid feel on the bars.Read less
Hand welded 6061-T6 triple butted frameset
Not all tubes are equal, Transmitter uses tube walls of different thicknesses to get material where it is needed and save weight where it isn’t.
Dropper seatpost ready
The Transmitter frame is compatible with a dropper seatpost so even the most sheepish riders can tackle those steep sections head on like a pro.
Vertical compliance and lateral stiffness
The strikingly flattened top tube is the spoonful of black magic we need to make the frameset both rigid and forgiving in all the right places. Stable yet nimble, the geometry has been tweaked to give a spirited ride.
Internal cable routing
Clean lines and tidy cables thanks to fully guided internal routing.
Designed around Boost 148/110 standards and 27.5" 2.6/2.8" tyres
Chain guide ready
Transmitter can be fitted with a chain guide. (ISCG 05 compatible).
|Stem:||Sonder Piskie / 31.8mm / 35mm|
|Fork:||Rockshox Recon RL Silver / 150mm / 27.5|
|Headset:||FSA Orbit C-40-ACB Headset / 7.8mm Spacer|
|Brake Front:||Shimano Deore M6100 Brake / Right / 1000mm|
|Brake Rear:||Shimano Deore M6100 Brake / Left / 2000mm|
|Rotor Front:||Shimano RT66 Rotor / 6 Bolt / 180mm|
|Rotor Rear:||Shimano RT66 Rotor / 6 Bolt / 160mm|
|Rear Mech:||Shimano Deore M6100 Rear Derailleur / 1 / 12|
|Rear Shifter:||Shimano Deore M6100 Shifter / 12 / Direct|
|Chainset:||Shimano Deore M6100 Crankset / 170mm / 32t|
|Bottom Bracket:||Shimano BB52 Bottom Bracket|
|Chain:||Shimano SLX Chain / 12 / 120|
|Seatpost:||X-Fusion Manic Drop Seatpost and Lever / 31.6mm / 150mm|
|Saddle:||Sonder Zone / 152 / Black|
|Tape/Grips:||Sonder Clutch / Black|
|Handlebar:||Sonder Aspect Riser|
|Wheels:||Sonder Nova 27.5+ Wheelset / Shimano|
|Front Tyre:||WTB Vigilante / Comp / 27.5 / 2.8|
|Rear Tyre:||WTB Trail Boss / Comp / 27.5 / 2.6|
|Tubes:||WTB Inner Tube / 27.5 / 2.5|
|Frame:||S: 2.0 kg; M: 2.03 kg; L: 2.07 kg; XL: 2.1 kg|
|Built:||S: 13.3 kg, M: 13.8 kg, L: 13.9 kg; XL: 13.9 kg|
|Pedals not included with full builds|
SizingIt is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height. Generally we recommend:
- Riders between 5ft 2in and 5ft 7in
- Riders between 5ft 6in and 5ft 10in
- Riders between 5ft 9in and 6ft 2in
- Riders of 6ft 2in +
|ST - Seat tube||410||440||470||485|
|TT - Top tube||581||603||623||647|
|HT - Head tube||105||115||115||130|
|HA - Head angle||65||65||65||65|
|SA - Seat angle||75||75||75||75|
|CS - Chainstay||425||425||427.5||430|
|BB - BB drop||52||52||52||52|
|FO - Fork offset||46||46||46||46|
|WB - Wheelbase||1144||1169||1191||1220|
|SO - Stand over||750||768||783||796|
|RE - Reach||422||442.5||462.5||482.5|
|SK - Stack||589||598||598||612|
|Weight: S: 2.0kg; M: 2.03kg; L: 2.07kg; XL: 2.1kg|
|Alloy trail frame with integrated tapered headset for a clean, low front end|
|Hand welded 6061-T6 triple butted frameset|
|High-quality extended welds|
|Optimised for 150mm (540mm axle to crown) suspension forks|
|Internally routed cables|
|Boost 148 rear spacing to allow huge tyre clearance while benefitting from a stronger wheel|
|Threaded 73mm BSA BB shell for no-creak assembly|
|Chainstay mounted disc brake for clean lines and damage protection|
|Reverb Stealth port|
|EN 14766 compliant|
|The Transmitter frame is suited to a low profile 2.8” tyre or aggressive 2.6” tyres, some larger 2.8”s may rub the chainstays in use|
