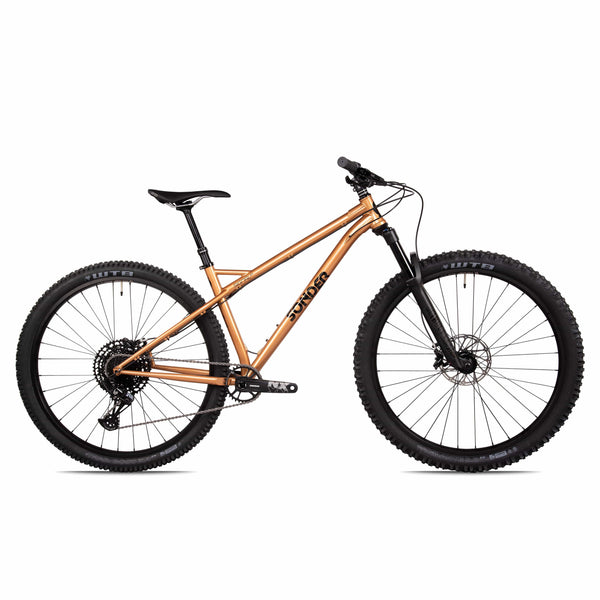

The Signal is for flat out speed.
It pedals like an XC bike, descends like an enduro bike, and captures the rawness of riding a hardtail on fast, flowy singletrack. Stand up, sprint, and ride it hard on the groomed trails at Llandegla and Glentress or take it to big mountains and let loose.
That low BB and long wheelbase gives a planted and stable feel through the corners and when tackling high speed descents. The low stack height leaves you with less of that ‘tall’ 29er feeling – you’ll feel like you’re 'in' the bike, not on the bike.
Big wheels roll faster. The 29" wheels can be paired with 2.2 to 2.6in tyres with clearance for winter conditions.
The Signal Steel rides beautifully – it’s got that distinctive steel feel to take the edge off the biggest hits while keeping stiffness where it counts so you can accelerate out of corners and track accurately through rocks and roots.
SRAM Eagle drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Its 1x drivetrain is a solution that is built to be lightweight, strong and intuitive, with the gear range to ride on any terrain.
NX Eagle provides the same Eagle performance benefits as the rest of the Eagle family. Slotting in just under the higher priced GX, the main differences are extra weight and the 11-50 range is not as wide as the 10-50 offered with GX, but functionally NX is 12-speed and fully compatible with SRAMs Eagle groupset.
Aggressive trail geometry
Neil has designed the Signal St to suit his aggressive riding style. A low bottom bracket makes it corner like its on rails, a spacious reach gives you room to move around on the bike, and the 66/74 head and seat angles give you the confidence to bomb the descents and while still being able to climb like a mountain goat.
Nothing feels quite so good as the famously springy and durable Steel. Signal St’s 4130 Chromoly, Hand Welded Steel tubing absorbs shock to soften the ride without any loss to feel or speed.
2.6” tyre clearance
Bucketloads of clearance for 2.6” tyres gives you the benefits of higher volume tyres without getting clogged up in UK conditions.
|Seatpost:||X-Fusion Manic Drop Seatpost and Lever / 31.6mm / 125mm|
|Frame:||Signal St Frame|
|Fork:||Rockshox Revelation RC / 29 / 130mm|
|Headset:||FSA Orbit C-40-ACB Headset / 7.8mm Spacer|
|Brake Front:||SRAM Guide T / 950mm|
|Brake Rear:||SRAM Guide T / 1800mm|
|Rotor Front:||Avid Centreline Rotor / 180mm|
|Rotor Rear:||Avid Centreline Rotor / 160mm|
|Rear Mech:||SRAM NX Eagle Rear Derailleur / 12 / Long|
|Rear Shifter:||SRAM NX Eagle Trigger Shifter|
|Chainset:||SRAM NX Eagle Crankset DUB / 170mm / 32|
|Bottom Bracket:||SRAM Bottom Bracket / DUB|
|Chain:||SRAM NX Eagle Chain / 118 Links|
|Stem:||Sonder Piskie / 31.8mm / 35mm|
|Saddle:||Sonder Zone / 152 / Black|
|Tape/Grips:||Sonder Clutch / Black|
|Handlebar:||Sonder Aspect Riser|
|Wheels:||Sonder Nova 29 Wheelset / Shimano|
|Front Tyre:||Goodyear Newton MTF Trail Tubeless / Black / 29 X 2.5|
|Rear Tyre:||Goodyear Newton MTR Trial Tubeless / Black / 29 X 2.4|
|Tubes:||WTB Inner Tube / 29 / 1.9-2.3|
|Frame:||S: 1.97 kg; M: 2.0 kg; L: 2.1 kg; XL: 2.14 kg|
|Built:||S: 12.4 kg; M: 12.65 kg; L: 13.8 kg; XL: 13.9 kg|
|Pedals not included with full builds|
SizingIt is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height. Generally we recommend:
- Riders between 5ft 2in and 5ft 7in
- Riders between 5ft 6in and 5ft 10in
- Riders between 5ft 9in and 6ft 2in
- Riders of 6ft 2in +
|ST - Seat tube||400||425||465||485|
|ETT - Effective Top Tube||585||606||634||664|
|HT - Head tube||100||105||115||125|
|HA - Head angle||66||66||66||66|
|SA - Seat tube angle||74||74||74||74|
|CS - Chainstay||425||425||430||435|
|BB - BB drop||65||65||65||65|
|FO - Fork offset||42/51||42/51||42/51||42/51|
|WB - Wheelbase||1127||1149||1183||1220|
|SO - Standover||730||738||760||772|
|RE - Reach||420||440||465||495|
|SK - Stack||601||606||615||624|
|Weight: S: 2.94kg; M: 3.1kg; L: 3.17kg; XL: 3.24kg|
|4130 Chromoly, Hand Welded Steel frame|
|148 mm boost thru axle standard|
|Clearance for 2.6” tyres|
|IS42.IS52 headset to give low stack height|
|73 mm BB shell|
|External cable routing for brake and gear cables|
|Stealth dropper routing|
|31.6 mm seatpost diameter, 34.9 mm clamp|
|Optimised for 130 mm travel suspension fork (42 or 51 mm offset)|
