Santiago knows its heritage; cold-worked, air hardened steel (100% recycled) is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.
Reynolds 631 steel touring frame for loading up and riding around the world.
..Read moreDurable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired. 631 is made from 100% recycled steel too.
Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.
Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.
With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in (157-170cm) Medium: Riders between 5ft 6in and 5ft 10in (167-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders 6ft 2in and over (187cm)
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
ST - Seat tube | 470 | 500 | 530 | 570 |
TT - Top tube | 543.1 | 563.8 | 584.6 | 605.4 |
HT - Head tube | 120 | 140 | 160 | 180 |
HA - Head angle | 71 | 71 | 71 | 71 |
SA - Seat angle | 73 | 73 | 72.5 | 72.5 |
CS - Chainstay | 450 | 450 | 450 | 450 |
BB - BB drop | 73 | 73 | 73 | 73 |
FO - Fork offset | 55 | 55 | 55 | 55 |
WB - Wheelbase | 1041.9 | 1063.4 | 1084.9 | 1106.4 |
SO - Stand over | TBC | TBC | TBC | TBC |
RE - Reach | 370 | 385 | 400 | 415 |
SK - Stack | 565.9 | 584.8 | 603.7 | 622.6 |
Fork A-C | 395 | 395 | 395 | 395 |

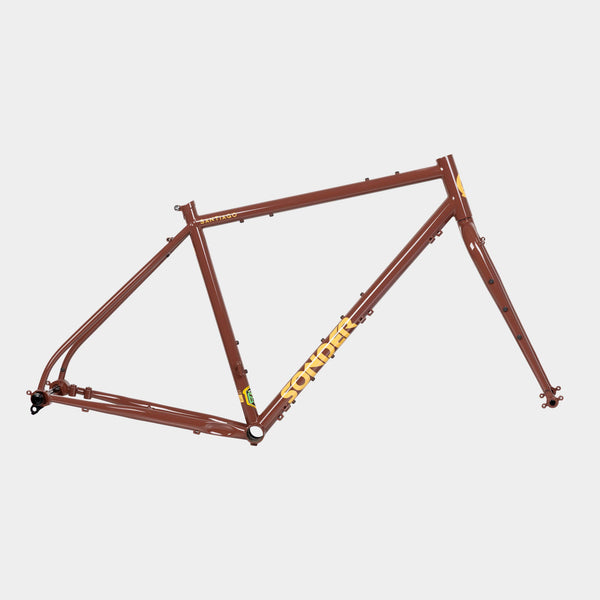

Durable, comfortable, Reynolds steel frame
Weight: S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg) |
Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube |
Chromoly fork and read frame |
68 mm BSA threaded BB |
Straight headtube (EC34) to fit 1 1/8” fork (headset not included) |
100 mm front, 142 mm rear bolt-through dropouts |
Flat mount disc brake compatible (160mm front, 140mm rear) |
Full rack/guard mounts |
Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres |
