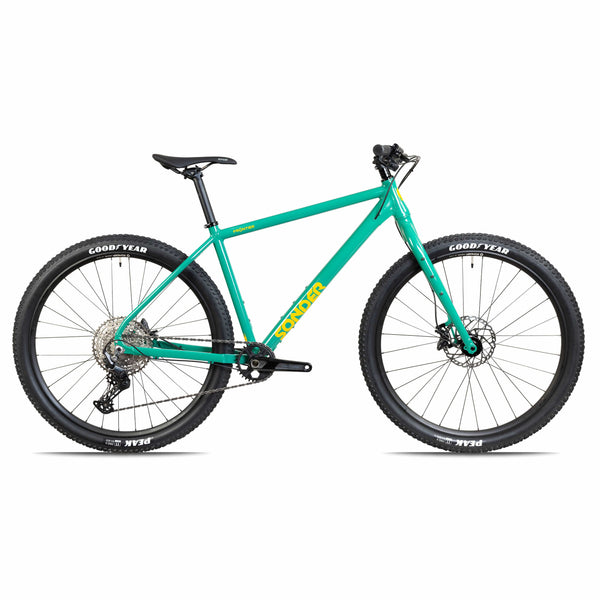

Frontier is our multi-activity hardtail mountain bike. Ride hard at the trail centre, load it up for a midweek bikepacking trip, pocket your passport and continue around the world. With full rack mounts at the back and multiple boss mounts on the fork, Frontier is an adaptable off-road explorer.
The geometry is for long day comfort but it’s no slouch...Read more
At a glance
- Shimano Deore M6100 12-speed groupset
- Frontier Rigid fork
- Sonder Nova 27.5+ wheelset
- 6061 aluminium frame
The 6061 aluminium frame provides a durable and stiff chassis giving a responsive kick as you demand power when the slope steepens or enjoy feedback and precision through the corners.
Available as a fully rigid or with 100mm suspension fork. Set it up for XC race speed or for all day big mile comfort.
Tyre clearance gives you the choice of 27.5+ or 29in wheelsets. Bolt through 148mm boost rear spacing provides the benefit of stronger, stiffer and more efficient wheels.
Shimano drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Shimano's new microspline hub means that you can run a 10 tooth cassette for a huge gear range. The new EV shifters and brakes provide loads of adjustment to get the perfect position as well as a rock-solid feel on the bars.Read less
Tuned for all-round capability
Built for a balance of cross country efficiency and trail centre capability. A favourite with bikepackers looking for all-day comfort and performance.
Light and clean
Clean lines thanks to internal cable routing. Frontier also incorporates routing for a dropper seat post. The 6061 aluminium tubing is durable, light, low maintenance and stiff.
Wider tyres. More grip.
Extra width between the chainstays gives you the choice of running 27.5+ tyres up to 3 inches or 29 inch tyres up to 2.5 inches.
Made for stronger wheels
Designed around bolt through Boost 148mm rear spacing providing the benefit of stronger, stiffer and more efficient wheels.
Wilderness trail features
Chainstay mounted disc brakes. And triple bottle mounts.
|Frame:||Frontier Frame / 6061 aluminium|
|Fork:||Frontier Rigid / aluminium|
|Headset:||FSA Orbit C-40-ACB|
|Shifters:||Shimano Deore M6100 / 1x / 12-speed / hydraulic|
|Brakes:||Shimano Deore M6100 / hydraulic / post mount|
|Rotors:||Shimano RT66 / 180mm (front); 160mm (rear) / 6-bolt|
|Rear derailleur:||Shimano Deore M6100 / 12-speed / long cage|
|Chainset:||Shimano Deore M6100 / 1x / 170mm / 32t|
|Cassette:||Shimano Deore M6100 / 12-speed / 10-51t|
|Chain:||Shimano SLX / 12-speed|
|Bottom bracket:||Shimano BB52 / BSA-threaded / 73mm|
|Wheels:||Sonder Nova 29"|
|Tyres:||WTB Ranger / Comp / 27.5 x 2.8"|
|Tubes:||WTB Inner Tube / 27.5 x 2.5"|
|Handlebars:||Sonder Aspect Riser|
|Seatpost:||Sonder Seatpost / 31.6mm|
|Frame:||S: 1.97kg; M: 2.0kg; L: 2.1kg; XL: 2.14kg|
|Build:||S: 12.4kg; M: 12.65kg; L: 13.8kg; XL: 13.9kg|
|Pedals not included with full builds|
It is important to get the right size bike, if the bike fits you well it will be faster, more comfortable and easier to handle.
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in Medium: Riders between 5ft 6in and 5ft 10in Large: Riders between 5ft 9in and 6ft 2in X-Large: Riders 6ft 2in and over
|ST - Seat tube||380||430||480||520|
|TT - Top tube||566||602||622||647|
|HT - Head tube||110||130||130||150|
|HA - Head angle||68||68||68||68|
|SA - Seat angle||73||73||73||73|
|CS - Chainstay||445||445||445||445|
|BB - BB drop||50||50||50||50|
|FO - Fork offset||51||51||51||51|
|WB - Wheelbase||1089||1127||1147||1174.5|
|SO - Stand over||764||793||825||853|
|RE - Reach||390||420||440||460|
|SK - Stack||566||580||594||613|
|Frame Weight: S: 1.84kg; M: 1.9kg; L: 1.98kg; XL: 2.03kg|
|Rigid Fork Weight - uncut: 1kg|

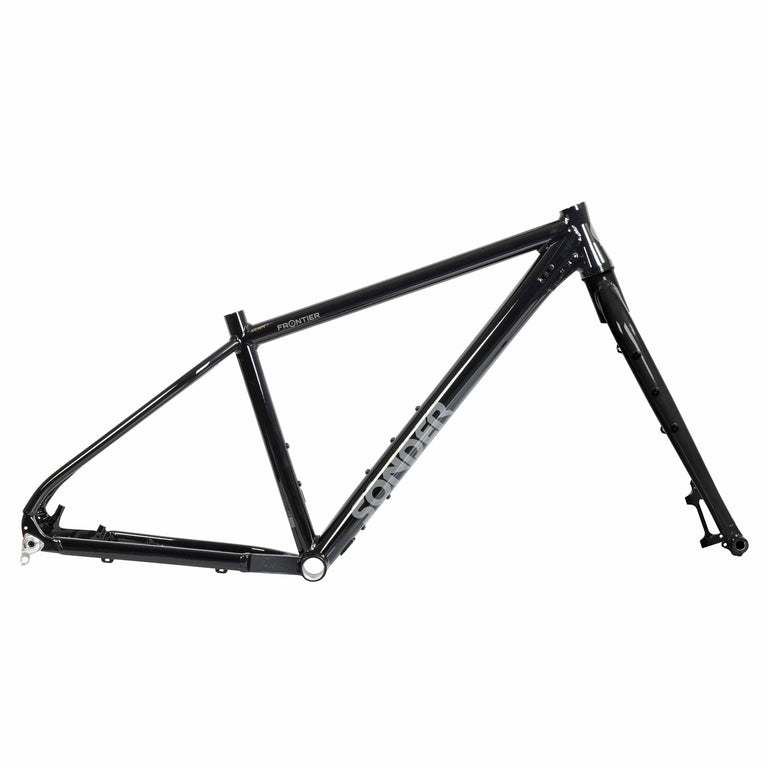

|6061 Aluminium frame|
|Optimised for rigid or 100mm suspension forks|
|Internal cable routing through downtube|
|Bolt Through Boost 148mm rear spacing for wheel strength and optimal chainline|
|Fork built around Bolt Through Boost 110mm spacing|
|Threaded 73mm BSA BB shell for no-creak assembly|
|Chainstay mounted disc brake for clean lines and damage protection|
|Triple bottle cage mount on downtube|
|Use a seat clamp with integrated mounts for pannier rack compatibility|
|Clearance for 3 inch 27.5+ or 2.5 inch 29er tyres|
|Reverb Stealth port|
|EN 14766 compliant|
