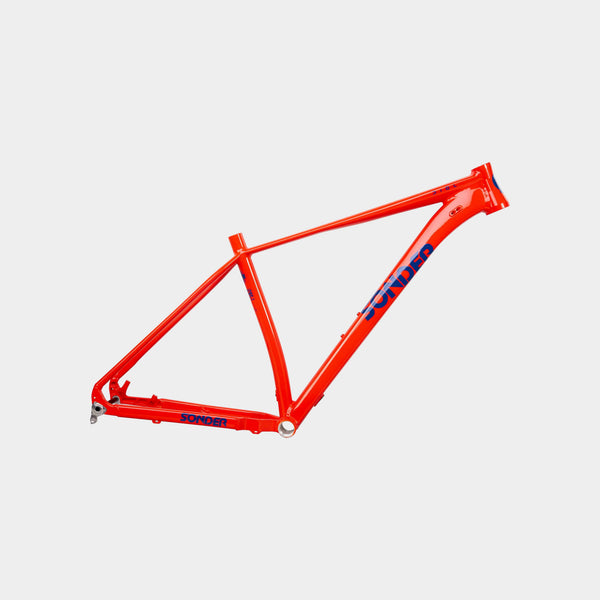

Dial Frame

Dial Frame

Race-tuned xc trail bike frame

€329,99

6061 Aluminium XC Trail Bike frame with a racing-inspired geometry. Strong and lightweight with a flattened top tube for lateral stiffness and vertical compliance

Read more

Read more

Buy now. Immediate Despatch

Build your bike

Select your size and make any changes you want from the standard build. When you’re done, hit Add to Bag at the bottom of the page

  • Frame

    Size
    Please select your Size
    Colour
    Please select your Colour

    Configure your Frame

    size

    • Small

    • Medium

    • Large

    • X-Large

    colour

    • Grey

    • Jaffa

Initial Price
€329,99
Extras
€0,00
Grand Price
€329,99
Go to Checkout
Description

Race-tuned XC trail bike, built for speed and efficiency. Beat your best time, cover big miles on a long day out, race to the podium. With its lightweight aluminium tubeset and 100mm travel up front, the Dial gives maximum pedalling efficiency whether you're riding 200kms at Dirty Reiver or racing flat out.

The Dial is designed for riding cross-country trails without compromise. It gives more confidence than a gravel bike and a more direct feel than a trail bike. The Dial's geometry is race-tuned and the 69 degree head angle, steep seat-tube and low stack height all work together to optimise climbing performance and direct, fast steering.

..Read more

We’ve used lightweight 6061 aluminium to build the Dial into a truly lightweight bike without compromising on strength or performance. A flattened top tube provides lateral stiffness for maximum pedalling efficiency and cornering precision, whilst providing a degree of vertical compliance for a more forgiving ride over distance.

Quick out the blocks with its low frame weight, lightweight XC-specific wheelset and fast tyres, the Dial provides instant acceleration and with 100mm of travel up front, carries its speed well over rough terrain. The 430mm chainstays are compact for agile cornering, without being so short that you lose power on the climbs. It's a ride that makes is perfect for long days out where you want more comfort and control than a gravel bike or to die flat out on your local leg-tester.

Read less
Features

Race-Inspired Geometry

Steep head angle and seat-tube optimise climbing performance and pedalling efficiency.

6061 Alloy Frameset

6061 aluminium tubing is durable, light, low maintenance and stiff.

Low Profile Top Tube

Lateral stiffness for improved power transfer and vertical compliance for comfort over long distance.

Internal cable routing

Clean lines and tidy cables thanks to internal down tube routing.

Wheel Compatibility

Designed around Boost 148 rear spacing with 12mm bolt-through axles.

Geometry and Sizing

Sizing

It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height. Generally we recommend:
Small
Riders between 5ft 2in and 5ft 7in
Medium
Riders between 5ft 6in and 5ft 10in
Large
Riders between 5ft 9in and 6ft 2in
X-Large
Riders of 6ft 2in +

Dial

Size Small Medium Large X-Large
ST - Seat tube 395 440 470 520
TT - Top tube 576 605 628 652
HT - Head tube 90 100 110 125
HA - Head angle 69 69 69 69
SA - Seat angle 74 74 74 74
CS - Chainstay 430 430 430 430
BB - BB drop 60 60 60 60
FO - Fork offset 51 51 51 51
WB - Wheelbase TBC 1114 1137 1168
SO - Stand over TBC TBC TBC TBC
RE - Reach 408 435 455 475
SK - Stack 583 593 602 616
Frame Spec
Sonder Dial
Weight: S: 1.75kg; M: 1.82kg; L: 1.9kg; XL: 2kg
Alloy XC trail frame with integrated tapered headset for a clean, low front end
Hand welded 6061 frameset
High-quality extended welds
Optimised for 100 mm (506 mm axle to crown) suspension forks
Internally routed cables
Boost 148 rear spacing
Threaded 73 mm BSA BB shell for no-creak assembly
Chainstay mounted disc brake for clean lines and damage protection
Reverb Stealth port
EN 14766 compliant
The Dial frame will accept tyres up to 2.4" in width
