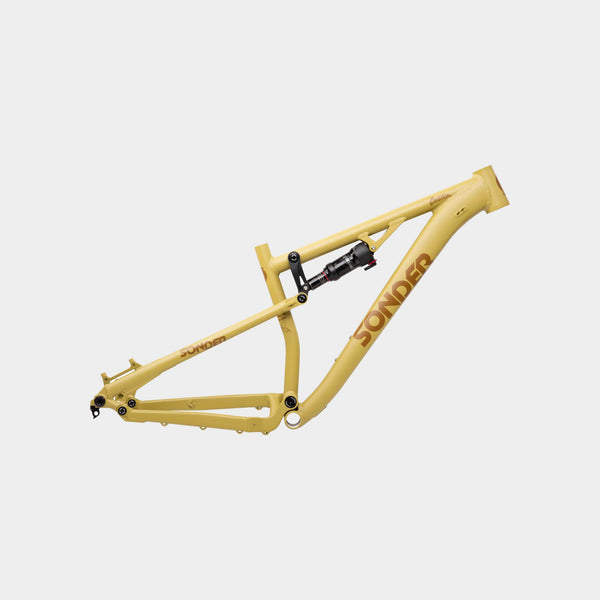

• Sonder Cortex Frame in Khaki

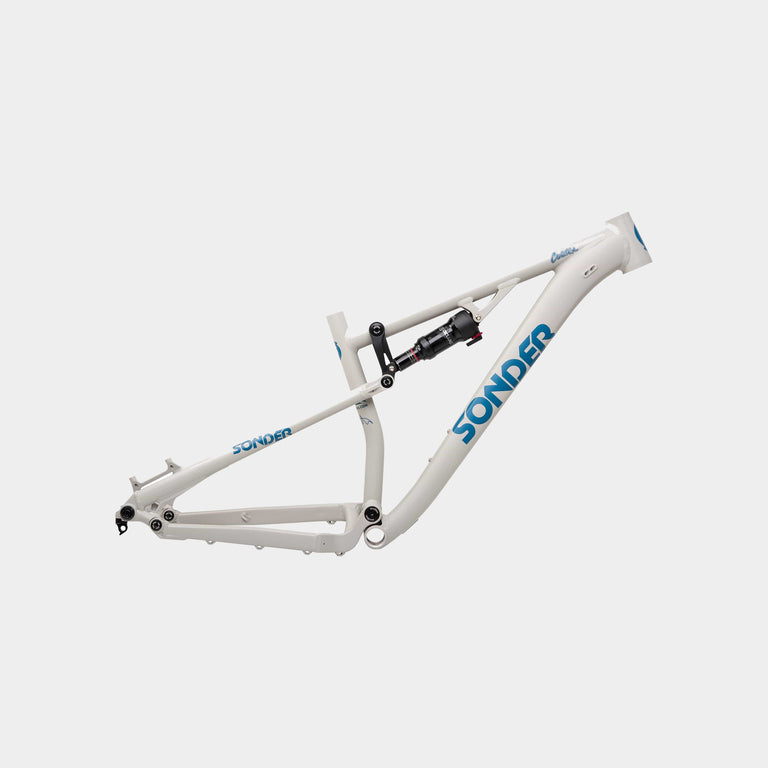

  • Sonder Cortex frame in Battleship
  • Cortex Frameset
  • brown

    Cortex Frameset

    Short travel 29er full suspension MTB frame

    €1.849

    1

    Select Options

    2

    Customize

    3

    Select Accessories

    Reset

    Buy Now. In stock for same day despatch.

    1

    Select Options

    Edit

    • Size
    • Colour
    • Size:

    • Colour:

    2

    Customize

    Edit

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you're done, just hit “Add to Bag” at the bottom of the page.

    Shock

    Rockshox Deluxe Select+ / 190x45
    Rockshox Deluxe Select+ / 190x45 Default Title

    +€0,00

    Cane Creek DBair IL
    Cane Creek DBair IL 190 / 45

    +€129,99

    3

    Select Accessories

    Edit

    Headset

    No Headset
    No Headset

    +€0,00

    FSA Orbit C-40-ACB Headset / 7.8mm Spacer
    FSA Orbit C-40-ACB Headset / 7.8mm Spacer

    +€34,99

    Initial Price

    Cortex Frameset / Select a frame...
    €1.849,00

    Extras

    €0,00

    Total Price

    €1.849,00
    Buy Now. In stock for same day despatch.

    With bang up to date geometry, Cortex is confidence inspiring with a playful character. Stand up and mash on the pedals out of turns, manual sections of trail and pop off tree stumps, rocks and roots. Smash out short and loose technical climbs, flat out descents and tight techy singletrack sections. The harder you push the bigger you grin. With 120mm travel and big wheels, Cortex is for mountain trails and down-country epics.

    At a glance

    Hand-welded from 6061 double butted aluminium frame for epic days over mixed terrain.

    • Fast and agile short travel full sus 29er; perfect for mixed terrain and day long epics
    • Frame: Sonder Cortex 120 mm travel, hand-welded 6061 double butted aluminium
    • Rockshox Deluxe Select+ / 190x45
    • Up to date geometry for trail bike agility and enduro bike stability

    Cortex frameset is hand-welded from 6061 double butted aluminium with a tapered ovalised top-tube and large section down-tube for a stiff chassis with just enough compliance to get you out of trouble. 66 head angle, 74.5 seat tube angle, 40 mm bottom bracket drop and a 465 mm reach (size large). Cortex’s dialed in geometry and 2.6" tyre clearance offers a comfortable and efficient climbing position for big miles and a stable, spirited platform for smashing up descents.

    Build Spec
    BuildCortex Frame
    Frameset
    Frame:Cortex Frame
    Fork:No Fork
    Shock:Rockshox Deluxe Select+ / 190x45

    Weight
    Frame:S: 1.97 kg; M: 2.0 kg; L: 2.1 kg; XL: 2.14 kg
    Built:S: 12.4 kg; M: 12.65 kg; L: 13.8 kg; XL: 13.9 kg
    Pedals not included with full builds
    Geometry and Sizing

    Sizing

    It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    Generally we recommend:
    Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
    Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
    Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
    X-Large: Riders of 6ft 2in + (187cm)

    Transmitter

    Size Small Medium Large X-Large
    ST - Seat tube 405 425 465 485
    TT - Top tube 575.6 597.3 625.6 649
    HT - Head tube 100 105 115 125
    HA - Head angle 66 66 66 66
    SA - Seat angle 74.5 74.5 74.5 74.5
    CS - Chainstay 445 445 445 445
    BB - BB drop 52 52 52 52
    FO - Fork offset 46 46 46 46
    WB - Wheelbase 1169.1 1191.2 1220.2 1244.3
    SO - Stand over 749.7 768.4 782.6 796.6
    RE - Reach 420 440 465 485
    SK - Stack 601.7 606.3 615.4 624.6
    Frame Spec

    Alloy 29er short travel full suspension trail bike

    Weight: S: 2.8kg; M: 2.9kg; L: 3.0kg; XL: 3.08kg (without shock)
    Hydroformed and custom butted alloy frame tubing
    Internal cable routing
    Rear Shock: Rockshox Deluxe Select+ 190 x 45mm
    Horst link suspension layout
    120mm rear travel; 130mm fork travel
    Clearance for up to 29 x 2.6" wide tyres
    73mm BSA threaded bracket shell
    148 x 12mm rear thru-axle
    31.6mm seat tube, 34.9mm clamp
    Headset: IS42/28.6 | IS52/40 (not included)
