Capable, tough and quick aluminium adventure bike for exploring the world.
At a glance
- Capable, durable, and quick aluminium adventure gravel bike
- Frame: Sonder Camino Alloy Frame
- Fork: Sonder Camino Al Carbon bladed fork
- Drivetrain: Shimano 105 / 2 x 11 / 11-34
- Brakes: Shimano 105 hydraulic disc brakes
- Wheelset: Sonder Nova 700c / Shimano
- 12 mm front and rear bolt through axles
- Tyres: WTB Resolute / Comp / 700c / 42c
- 700 x 50mm or 650b x 2.1 tyre clearance
- Rack/guard mounts on the fork and rear.
Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.
Infused with DNA from cyclocross, gravel, and adventure race bikes, the Camino’s relaxed geometry was designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.
The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1" for that added traction and comfort on bumpier terrain.
Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mud guard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.
The 2 x 11 gearing offers a gear range that is wide enough to cope with any terrain, opening up the alpine passes to mere mortals with enough at the top end to cruise up on the flat. 2x builds give a wide gear range and keep the jumps between gears small.
Fast and responsive even when loaded up. With a lightweight aluminium frame, carbon forks, long wheel base and an extended head tube, the geometry promotes an upright riding position for all-day riding comfort.
External cable routing facilitates maintenance when you haven’t got access to a full workshop; cables are fully housed to keep your machinery running smoothly in all conditions.
Big tyre clearance for tackling mixed terrains: up to 650b x 2.1” or 700c x 50 mm
Powerful and firm braking
Well-modulated seatstay mounted hydraulic disk brakes will help to bring you to a halt and reduce the risk of wheel lock when that elk appears out of nowhere.
Lightweight, strong and responsive with an alloy steerer; kitted out with mudguard mounts which accommodate racks for lightweight loads
The triple cage bottle mount on top of the downtube allows for 2 different mounting positions. Opt for the modern ultra-light bikepacking luggage or load up with panniers on the rear rack mounts.

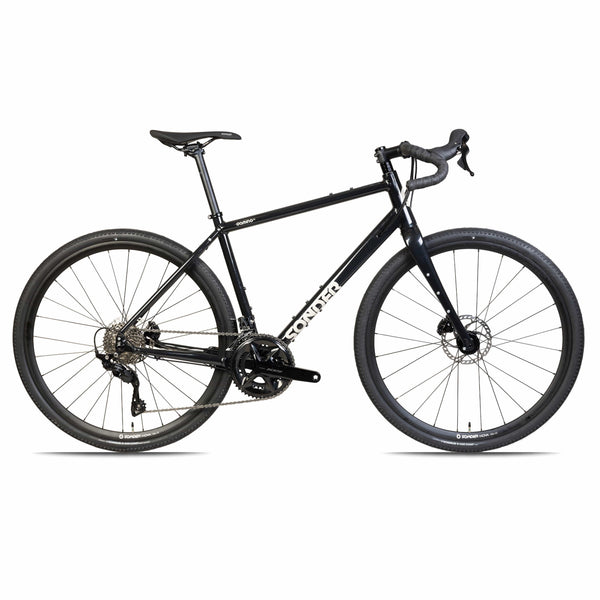

|Build||Camino Al 105|

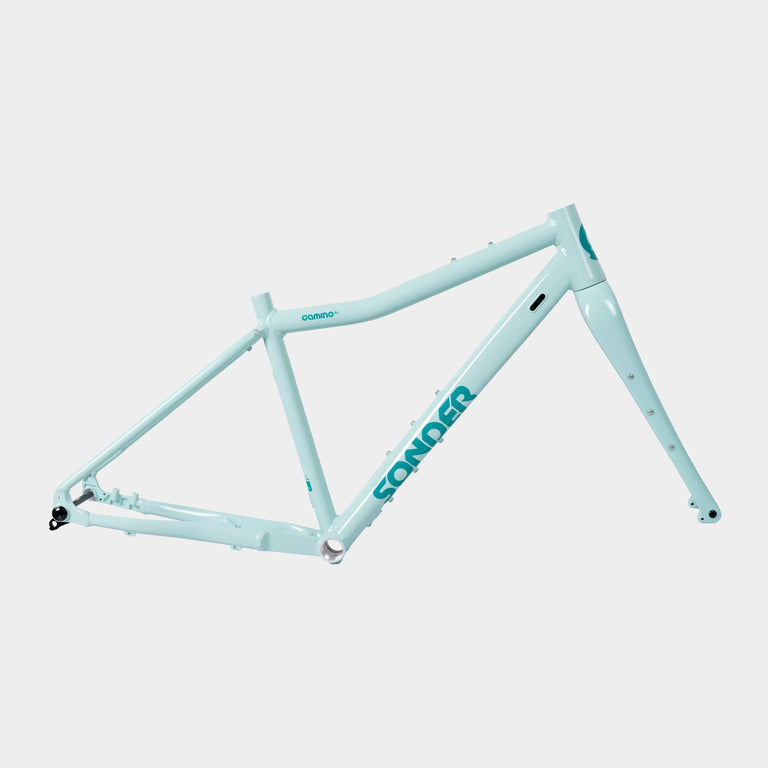

|Frame:||Camino Al Frame|
|Fork:||Camino Al Forks|
|Headset:||FSA Orbit C-40-ACB Headset / 7.8mm Spacer|
|Left Brake:||Shimano 105 [R7020] STI Shifter / Hydraulic / Left / Flat|
|Right Brake:||Shimano 105 [R7020] STI Shifter / Hydraulic / Right / Flat|
|Calipers:||Sram Rival Flat Mount|
|Rotors:||Shimano RT66 Rotor / 6 Bolt / 160mm|
|Front Mech:||Shimano 105 [R7000] Front Derailleur / Braze On / Black|
|Rear Mech:||Shimano 105 [R7000] Rear Derailleur / GS / Black|
|Chainset:||Shimano 105 [R7000] Crankset / 172.5mm / 50-34t / Black|
|Bottom Bracket:||Shimano RS500 Bottom Bracket|
|Chain:||Shimano HG601 Chain / 11 / 118 Links|
|Cassette:||Shimano 105 HG700 Cassette / 11-32|
|Stem:||Sonder Storc / 100mm|
|Seatpost:||Sonder Seatpost / 27.2mm / 400mm|
|Saddle:||Sonder Zone / 152 / Black|
|Tape/Grips:||Sonder Reels / Black|
|Wheels:||Sonder Nova 700c Wheelset / Shimano|
|Tyres:||Donnelly X'Plor MSO TL / 700 / 40mm / 120 TPI / Black|
|Tubes:||WTB Inner Tube / 700 / 38-45|
|Frame:||S: 1.73 kg; M: 1.75 kg; L: 1.84 kg; XL: 1.92 kg|
|Pedals not included with full builds|
SizingGenerally we recommend:
- Riders between 5ft 2in and 5ft 7in
- Riders between 5ft 6in and 5ft 10in
- Riders between 5ft 9in and 6ft 2in
- Riders 6ft 2in and over
|ST - Seat tube||460||490||520||550|
|TT - Top tube||530||556||576||604|
|HT - Head tube||140||160||180||200|
|HA - Head angle||71||71||71||71|
|SA - Seat angle||74.5||74||74||73|
|CS - Chainstay||435||435||435||435|
|BB - BB drop||73||73||73||73|
|FO - Fork offset||50||50||50||50|
|WB - Wheelbase||1020||1040||1062||1070|
|SO - Stand over||743||761||785||808|
|RE - Reach||370||385||400||410|
|SK - Stack||568||587||605||624|
|Weight: S: 1.9kg; M: 2.0kg; L: 2.0kg; XL: 2.1kg|
|Carbon fork with alloy steerer|
|Seatpost diameter: 27.2mm|
|Seat tube OD 31.8 mm|
|Headset: IS42/28.6 | IS52/40|
|Disk brake only|
|Mud guard and pannier rack mounts 700 x 50mm or 650b x 2.1” tyre clearance 12mm bolt through axles at both ends|
If you’ve made it this far, it’s clear that I’ve very much enjoyed my time on the Camino AL. So much so, that I’m seriously considering adding one to my stable, that's how good this bike is.
Read the full review here
With its flexible wheel size options and plenty of tyre clearance, there’s scope for building the Sonder Camino AL however you want it. However, as built, this Rival 1 option seems to me to be a great fit straight out the box. If you can’t fork out for this higher end build kit straight away, the ride quality is such that the frame makes a good candidate for later upgrades, and the handling is simply excellent. Unless your heart is set on steel, titanium, or carbon, I can’t think of a reason why you wouldn’t want this bike. I do want this bike, and I’m genuinely sorry to be sending it back.
