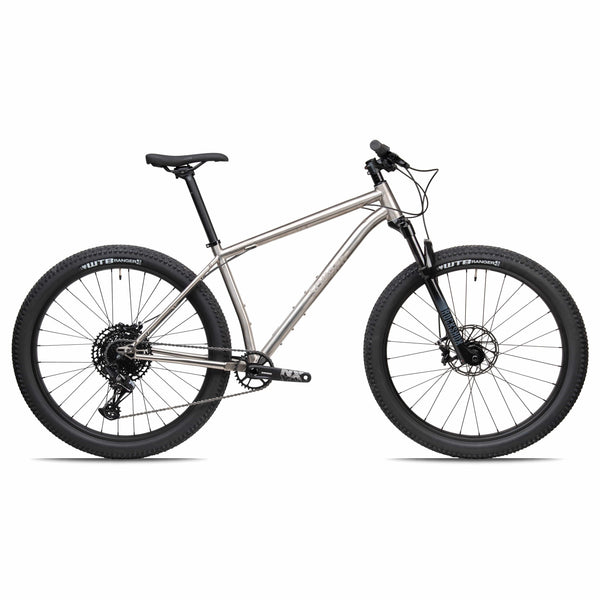

Multi-day titanium expedition hardtail designed for big mountain days and fully loaded adventures.
Plush 27.5+ tyres rapidly steamroll over everything whilst giving a corner grip that will make a muddy WRT a breeze.
..Read moreEngineered for durability, lightness, and strength, Broken Road’s titanium frame is built to withstand the roughest of terrains whilst giving you a smooth ride.
A relaxed head angle strikes a perfect balance between comfy uphill grinding and hair-raising downhill whooping, whilst a longer wheelbase wonderfully balances precision and handling.
Broken Road’s wide, ovalised top tube gives vertical compliance but lateral stiffness, combining speed with control, and makes it easier to keep your luggage in place when riding over rough ground.
Broken Road’s titanium frame is semi-fat ready, designed for optimum use with 27.5+ wheels. These can be swapped out for 29ers to help you tackle any adventure.
GX Eagle AXS combines the proven GX Eagle groupset with SRAM®’s wireless shifting technology. Customisable via SRAM®’s AXS smartphone app, it shifts precisely and instantly every time, eliminating cable stretch completely. It also leaves your bars nice and clean!
Sitting in the middle of SRAM®’s groupset hierarchy, GX Eagle AXS is the best groupset most of us would ever need, using a 12-speed 10-52 tooth cassette.
Read lessClimb aboard and experience the famed resilience of titanium. No other material is as durable, lasts as long, or looks as good, and Broken Road’s aeronautical grade titanium tubing isolates the rider from shock, gives an efficient ride, and maximizes storage potential. Thanks to the low standover height and rider clearance, you won’t have to make any compromises when riding over rough terrain either.
Designed for optimum use with 27.5+ (semi-fat) wheels which help you to tackle any adventure. The plus-sized wheels cruise over obstacles, hold momentum, and give enhanced control thanks to a larger contact patch.
The long wheelbase combines precision and control, giving you the flexibility to adjust riding position easily. The frame is designed with a relaxed head angle, creating the perfect set up for eating up the miles over any surface, and striking the balance between comfortable uphill grinding and hair-raising downhill whooping.
Adjustable sliding dropouts let you lengthen your Broken Road for eating up the miles or shorten it for the technical, steep trails, and allow for either 27.5+ or 29” wheels, and either singlespeed, derailleur, or internal hub gears.
Rack mounts allow you to load up with panniers.
Frameset | |
---|---|
Frame: | Broken Road Frame | Titanium |
Fork: | RockShox Reba RL | 100mm (travel) |
Headset: | FSA Orbit C-40-ACB |
Groupset | |
---|---|
Shifters: | SRAM GX Eagle AXS Trigger | 1x | 12-speed |
Brakes: | SRAM G2 R | Hydraulic | Post Mount |
Rotors: | Avid Centreline | 180mm (front), 160mm (rear) | 6-bolt |
Rear derailleur: | SRAM GX Eagle AXS | Long cage | 12-speed |
Chainset: | SRAM GX Eagle DUB | 170mm | 32t |
Cassette: | SRAM XG1275 Eagle | 10-52t | 12-speed |
Chain: | SRAM GX Eagle | 12-speed |
Bottom bracket: | SRAM DUB | BSA | 73mm |
Wheelset | |
---|---|
Wheels: | Sonder Alpha 29" XC UK Made |
Tyres: | Goodyear Peak Tubeless | 29 x 2.4" | Tan |
Tubes: | Vittoria Inner Tube |
Finishing kit | |
---|---|
Handlebars: | Sonder Aspect Riser | 780mm |
Stem: | Sonder Piskie |
Seatpost: | Sonder Seatpost | 31.6mm |
Saddle: | Sonder Abode |
Grips: | Sonder Clutch | Black |
Weight | |
---|---|
Frame: | S: 2.05kg; M: 2.16kg; L: 2.23kg; XL: 2.3kg |
Build: |
Pedals not included with full builds | |
Specifications are subject to change without notice |
It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the top tube to your crotch this will give you enough seat post adjustment to find your optimum saddle height.
Size recommendationsSmall: Riders between 5ft 2in and 5ft 7in (157-170cm) Medium: Riders between 5ft 6in and 5ft 10in (167-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders of 6ft 2in + (187cm) |
![]() |
Size recommendationsSmall: Riders between 5ft 2in and 5ft 7in (157-170cm) Medium: Riders between 5ft 6in and 5ft 10in (167-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders of 6ft 2in + (187cm) ![]() |
All measurements are in mm unless specified.
Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
ST - Seat tube | 410 | 440 | 465 | 495 |
ETT - Effective top tube | 588.9 | 613.1 | 642.4 | 671.5 |
TT - Top tube | 588.9 | 631.1 | 642.4 | 671.5 |
HT - Head tube | 105 | 120 | 135 | 150 |
HA - Head angle | 67 | 67 | 67 | 67 |
SA - Seat angle | 73 | 73 | 73 | 73 |
CS - Chainstay | 440 - 460 (adjustable) | 440 - 460 (adjustable) | 440 - 460 (adjustable) | 440 - 460 (adjustable) |
BB - BB drop | 60 | 60 | 60 | 60 |
FO - Fork offset | 44-51 | 44-51 | 44-51 | 44-51 |
WB - Wheelbase | 1116.6 (measured at 440mm) | 1142.2 (measured at 440mm) | 1173.2 (measured at 440mm) | 1204 (measured at 440mm) |
RE - Reach | 410 | 430 | 455 | 480 |
SK - Stack | 585 | 598.8 | 612.6 | 626.4 |
Titanium is lightweight, strong and durable make it an ideal construction material for bike frames. No other material is as durable, lasts as long, or looks as good. Our frames are handmade and come with a 10 year frame warranty
Weight: S: 2.05kg; M: 2.16kg; L: 2.23kg; XL: 2.3kg |
3Al/ 2.5V Aeronautical Grade Hand Welded Titanium Frame |
148 mm boost thru axle standard |
Post mount brake on chainstay, 160mm rotor as standard |
Triple bottle cage mounts on top and bottom of downtube |
Pannier rack mounts |
Internal cable routing for rear brake, rear mech and dropper seatpost. |
Not compatible with a front mech |
Headset: IS42/28.6 | IS52/40 |
Seatpost: 31.6 mm |
Seat tube OD: 34.9 mm |
73 mm BSA BB standard |
Max tyre width on 29": 2.6" |
Max tyre width on 27.5": 3" |
Chainline: 52mm |
Max chainring size: 36 tooth |
