Santiago knows its heritage; cold-worked, air hardened steel (100% recycled) is steeped in the history of long distance riding. But with bang up-to-date geometry, Santiago has a refreshing feel that you know will be good for years to come: 450 mm chainstays, 1.1 m wheelbase, 71 degree head angle, a fork rake of 55 and generous tyre clearance. This makes for a truly comfortable, fast, assured bike, both in its own right (audax slaying, winter riding) or when racked up for multi-month adventures.
Apex 1 is a single ring 40 chainset with an 11 – 42t cassette in the back, giving you low enough gearing for tackling the climbs unloaded with the simplicity of a 1x chainset...Read more
Durable, smooth and assured on those multi-month trips Reynolds 631 steel is an excellent material for round-the-world touring where you’re completely dependent on your bike. We’d be surprised if you needed to get your frame repaired, but it’s comforting to know that finding a steel welder in the middle of nowhere is far easier than getting your alloy frame repaired. 631 is made from 100% recycled steel too.
Santiago’s takes classic road bike geometry as a starting point, with a longer wheelbase and higher stack height for a more comfortable riding position and assured ride, whether you’re travelling light or fully loaded up.
Clearance for up to 650b x 47 mm or 700c x 37 mm tyres that make your ride more comfortable and give better grip on the bitumen as you corner.
With full rack and guard mountains, 3 sets of bottle cage bosses and extra cage mounts on the fork, Santiago can handle being fully loaded up.
|Frame:||Santiago Frame | Reynolds 631 steel|
|Fork:||Santiago Steel | Straight|
|Headset:||FSA Orbit MX Headset | 1 1/8"|
|Shifters:||SRAM Apex 1 | 1x | 11-speed|
|Brakes:||SRAM Apex | Hydraulic | Flat mount|
|Rotors:||Avid Centreline | 160mm (front), 140mm (rear) | 6-bolt|
|Rear derailleur:||SRAM Apex 1 | Long cage | 11-speed|
|Chainset:||FSA Vero Pro Chainset | 40t | 172.5mm|
|Cassette:||SRAM PG1130 | 11-42t | 11-speed|
|Chain:||SRAM PC1110 | 11-speed|
|Bottom bracket:||FSA Power Pro | Square Taper | BSA | 122.5mm|
|Wheels:||Sonder Nova 700c UK Made|
|Tyres:||WTB Expanse | TCS | 700c x 32mm | Tan|
|Tubes:||Vittoria Inner Tube|
|Seatpost:||Sonder Seatpost | 27.2mm|
|Tape:||Sonder Reels | Black|
|Frame:||S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg)|
|Pedals not included with full builds|
|Specifications are subject to change without notice|
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in Medium: Riders between 5ft 6in and 5ft 10in Large: Riders between 5ft 9in and 6ft 2in X-Large: Riders 6ft 2in and over
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
|ST - Seat tube||470||500||530||570|
|TT - Top tube||543||563||584||605|
|HT - Head tube||120||140||160||180|
|HA - Head angle||71||71||71||71|
|SA - Seat angle||73||73||72.5||72.5|
|CS - Chainstay||450||450||450||450|
|BB - BB drop||73||73||73||73|
|FO - Fork offset||55||55||55||55|
|WB - Wheelbase||1042||1063||1085||1106|
|SO - Stand over||TBC||TBC||TBC||TBC|
|RE - Reach||370||385||400||415|
|SK - Stack||566||585||604||623|

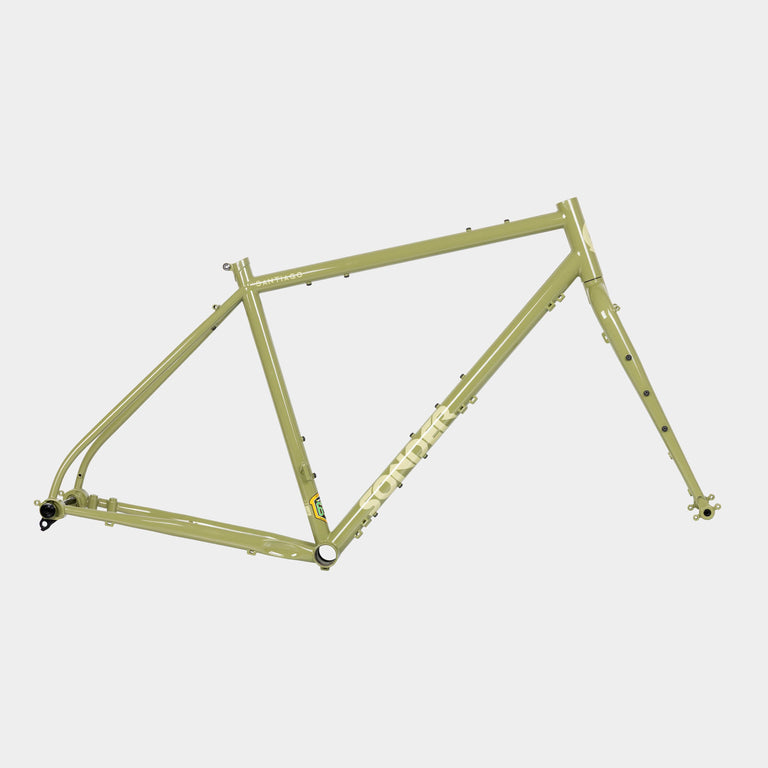

Durable, comfortable, Reynolds steel frame
|Weight: S: 2.34kg; M: 2.4kg; L: 2.5kg; XL: 2.59kg (plus fork 1.35kg)|
|Reynolds 631 steel, cold worked, air hardened seat tube, top tube and down tube|
|Chromoly fork and read frame|
|68 mm BSA threaded BB|
|Straight headtube (EC34) to fit 1 1/8” fork|
|100 mm front, 142 mm rear bolt-through dropouts|
|Flat mount disc brake compatible (160mm front, 140mm rear)|
|Full rack/guard mounts|
|Tyre clearance for 700 x 37 mm, 650b x 47 mm tyres|
