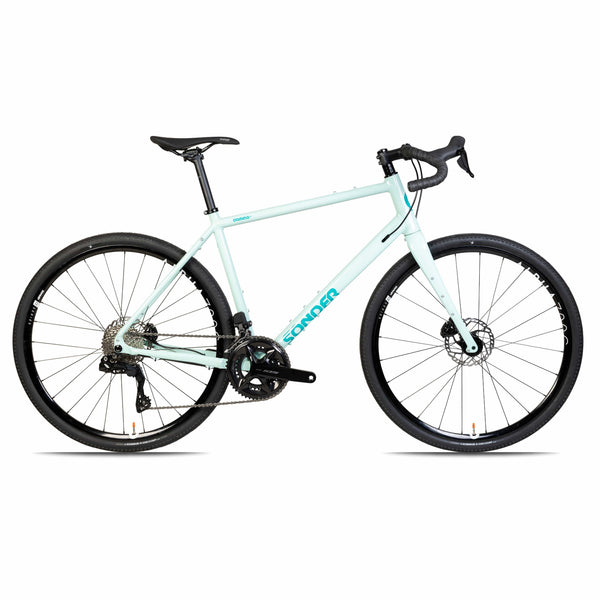

Capable, tough and quick aluminium adventure bike for exploring the world.
Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities...Read more
The Camino takes elements from cyclocross, gravel, and adventure race bikes. Its relaxed geometry is designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.
A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.
The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.1" for that added traction and comfort on bumpier terrain.
Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mud guard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.Read less
Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.
The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.2” - that’s most mountain bike tyres covered.
Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.
Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.
Clean lines and tidy cables thanks to fully guided internal routing. The Camino also has routing for a dropper seatpost.
A BSA threaded bottom bracket is super-durable and readily available, wherever you find yourself. So it’s not a pain in the bottom bracket!
|Frame:||Camino Al Frame | 6061 aluminium|
|Fork:||Camino Carbon | Monocoque|
|Headset:||FSA Orbit C-40-ACB|
|Shifters:||Shimano 105 R7170 Di2 | 2x | 12-speed|
|Brakes:||Shimano 105 R7170 | Hydraulic | Flat mount|
|Rotors:||Shimano RT66 | 160mm (front), 160mm (rear) | 6-bolt|
|Rear derailleur:||Shimano 105 R7150 Di2 | 12-speed|
|Front derailleur:||Shimano 105 R7150 Di2 | Braze-on|
|Chainset:||Shimano 105 R7100 | 172.5mm | 50-34t|
|Cassette:||Shimano 105 HG710 | 11-34t | 12-speed|
|Chain:||Shimano 105 HG7100 | 12-speed|
|Bottom bracket:||Shimano RS500 | BSA|
|Wheels:||Sonder Nova 700c UK Made|
|Tyres:||Innova Gravel Mix | 700c x 40mm | Black|
|Tubes:||WTB | 700c x 38-45mm|
|Handlebars:||Sonder Bomber | 56cm|
|Stem:||Sonder Storc | 70mm|
|Seatpost:||Sonder Seatpost | 31.6mm|
|Saddle:||Sonder Abode | 138mm | Black|
|Tape:||Sonder Reels | Black|
|Frame:||S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg; (Plus fork: 0.5kg)|
|Pedals not included with full builds|
Generally we recommend: Small: Riders between 5ft 2in and 5ft 7in Medium: Riders between 5ft 6in and 5ft 10in Large: Riders between 5ft 9in and 6ft 2in X-Large: Riders 6ft 2in and over
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
|ST - Seat tube||460||490||520||550|
|TT - Top tube||536||562||592||629|
|HT - Head tube||150||170||190||210|
|HA - Head angle||69||69||69||69|
|SA - Seat angle||74.5||74||74||73|
|CS - Chainstay||435||435||435||435|
|BB - BB drop||73||73||73||73|
|FO - Fork offset||50||50||50||50|
|WB - Wheelbase||1051||1073||1105||1132|
|SO - Stand over||752||773||795||815|
|RE - Reach||380||395||420||440|
|SK - Stack||563||582||600||619|
Lightweight, durable and strong aluminium gravel bike frame.
|Weight: S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg; (Plus fork: 0.5kg)|
|One piece carbon monocoque fork|
|Seatpost diameter: 31.6mm|
|Seat tube OD 34.9mm|
|Headset: IS42/28.6 | IS52/40|
|Disk brake only|
|Mud guard and pannier rack mounts|
|700 x 50mm or 650b x 2.2” tyre clearance|
|12mm bolt through axles at both ends|
