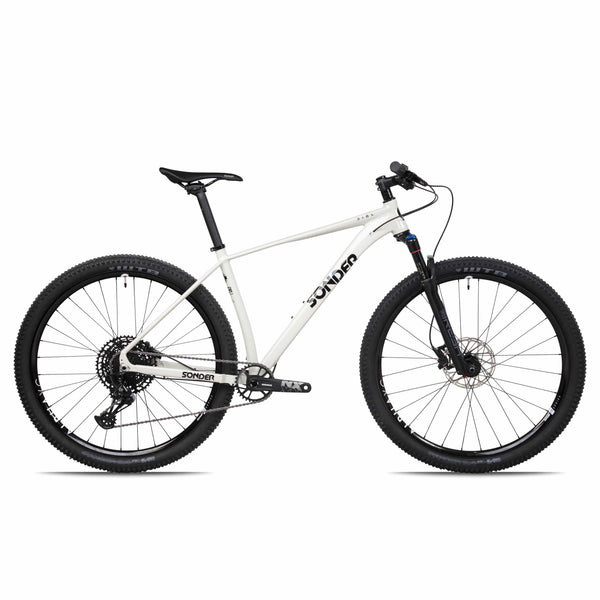

Dial XT

Photos for illustration purposes. Please check the bike spec for detailed component listings.

Dial XT

Race-tuned xc trail bike


6061 Aluminium XC Trail Bike with 100mm travel and a racing-inspired geometry. Light, fast and efficient for pitting yourself against climbs and pushing your limits

Read more

Read more

Sorry, this product isn't available at the moment.

Orderbook opens February for delivery in August.


Race-tuned XC trail bike, built for speed and efficiency. Beat your best time, cover big miles on a long day out, race to the podium. With its lightweight aluminium tubeset and 100mm travel up front, the Dial gives maximum pedalling efficiency whether you're riding 200kms at Dirty Reiver or racing flat out.

At a glance

  • 6061 Aluminium frame
  • Rockshox Sid Ultimate / 29 / 100mm
  • Shimano XT / 12 speed / 10-51 cassette
  • Shimano XT Hydraulic Disc Brakes
  • Sonder Alpha 29 XC Wheelset / XD
  • Clearance for 29 x 2.4" tyres
  • Bolt-through with 12mm axles and 148mm boost spacing

The Dial is designed for riding cross-country trails without compromise. It gives more confidence than a gravel bike and a more direct feel than a trail bike. The Dial's geometry is race-tuned and the 69 degree head angle, steep seat-tube and low stack height all work together to optimise climbing performance and direct, fast steering.

..Read more

We’ve used lightweight 6061 aluminium to build the Dial into a truly lightweight bike without compromising on strength or performance. A flattened top tube provides lateral stiffness for maximum pedalling efficiency and cornering precision, whilst providing a degree of vertical compliance for a more forgiving ride over distance.

Quick out the blocks with its low frame weight, lightweight XC-specific wheelset and fast tyres, the Dial provides instant acceleration and with 100mm of travel up front, carries its speed well over rough terrain. The 430mm chainstays are compact for agile cornering, without being so short that you lose power on the climbs. It's a ride that makes is perfect for long days out where you want more comfort and control than a gravel bike or to die flat out on your local leg-tester.

Read less

Race-Inspired Geometry

Steep head angle and seat-tube optimise climbing performance and pedalling efficiency.

6061 Alloy Frameset

6061 aluminium tubing is durable, light, low maintenance and stiff.

Low Profile Top Tube

Lateral stiffness for improved power transfer and vertical compliance for comfort over long distance.

Internal cable routing

Clean lines and tidy cables thanks to internal down tube routing.

Wheel Compatibility

Designed around Boost 148 rear spacing with 12mm bolt-through axles.

Build Spec
Build Dial XT
Frame: Dial Frame
Fork: Rockshox Sid Ultimate / 29 / 100mm
Headset: FSA Orbit C-40-ACB Headset / 7.8mm Spacer
Seat Clamp: Sonder Gromit / 34.9mm
Group Set
Brake Front: Shimano XT M8120 Brake / Right / 1000mm
Brake Rear: Shimano XT M8120 Brake / Left / 2000mm
Rotor Front: Shimano RT66 Rotor / 6 Bolt / 180mm
Rotor Rear: Shimano RT66 Rotor / 6 Bolt / 160mm
Rear Mech: Shimano XT M8100 Rear Derailleur / 1 / 12
Rear Shifter: Shimano XT M8100 Shifter / 12 / Direct
Chainset: Shimano XT M8100 Crankset / 170mm / 32t
Bottom Bracket: Shimano MT800 Bottom Bracket / BSA
Chain: Shimano SLX Chain / 12 / 120
Cassette: Shimano XT M8100 Cassette / 12 / 10-51t
Finishing Kit
Stem: Sonder Storc / 70mm
Seatpost: Sonder Seatpost / 31.6mm / 400mm
Saddle: Sonder Zone / 133 / Black
Tape/Grips: Sonder Clutch / Black
Handlebar: Sonder Aspect Flat
Wheels: Sonder Alpha 29 XC / XD
Front Tyre: WTB Ranger / Light Fast Rolling / 29 / 2.4
Rear Tyre: WTB Ranger / Light Fast Rolling / 29 / 2.4
Tubes: WTB Inner Tube / 29 / 1.9-2.3
Frame (approx): S: 1.75 kg; M: 1.82 kg; L: 1.9 kg; XL: 2 kg
Pedals not included with full builds
Geometry and Sizing


It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height. Generally we recommend:
Riders between 5ft 2in and 5ft 7in
Riders between 5ft 6in and 5ft 10in
Riders between 5ft 9in and 6ft 2in
Riders of 6ft 2in +


Size Small Medium Large X-Large
ST - Seat tube 395 440 470 520
TT - Top tube 576 605 628 652
HT - Head tube 90 100 110 125
HA - Head angle 69 69 69 69
SA - Seat angle 74 74 74 74
CS - Chainstay 430 430 430 430
BB - BB drop 60 60 60 60
FO - Fork offset 51 51 51 51
WB - Wheelbase TBC 1114 1137 1168
SO - Stand over TBC TBC TBC TBC
RE - Reach 408 435 455 475
SK - Stack 583 593 602 616
Frame Spec
Sonder Dial
Weight: S: 1.75kg; M: 1.82kg; L: 1.9kg; XL: 2kg
Alloy XC trail frame with integrated tapered headset for a clean, low front end
Hand welded 6061 frameset
High-quality extended welds
Optimised for 100 mm (506 mm axle to crown) suspension forks
Internally routed cables
Boost 148 rear spacing
Threaded 73 mm BSA BB shell for no-creak assembly
Chainstay mounted disc brake for clean lines and damage protection
Reverb Stealth port
EN 14766 compliant
The Dial frame will accept tyres up to 2.4" in width

The Details

Dial XT in action
