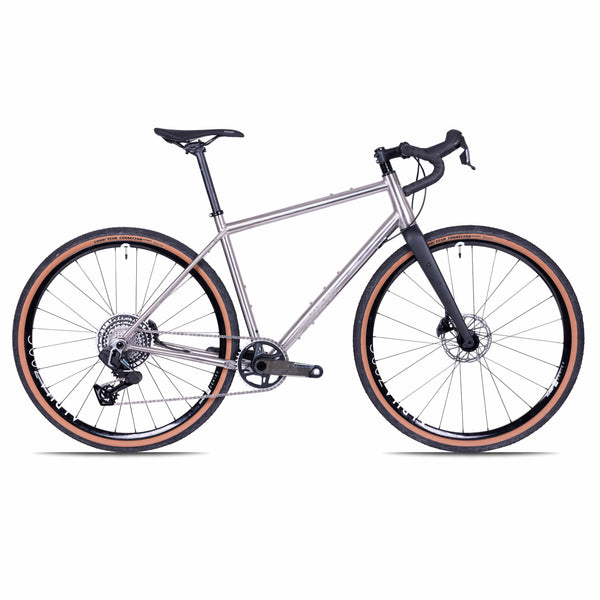

Sharing the DNA of a cyclocross, gravel and adventure race bike, the Camino is designed to get you out there exploring the world, with relaxed geometry for long day comfort.
We've developed the Camino to give you the perfect mix of speed and confidence. Light, zippy titanium with a slack head angle and longer wheelbase, Camino excels both loaded and unloaded, absorbing imperfections in surfaces you ride.
..Read moreSRAM® Force eTap AXS XPLR
Force eTap AXS combines the high-end Force 1 groupset with SRAM’s eTap wireless electronic shifting technology. Fully customisable via SRAM’s AXS smartphone app, it shifts instantly and precisely every time, completely eliminating cable stretch and housing wear, whilst leaving your bars nice and clean.
The Force XPLR AXS gravel-specific groupset uses a 12-speed 10-44T cassette and derailleur, balancing the wide range of gearing you need for riding off-road with tight jumps for maintaining your rhythm on tarmac. Firm, powerful and well-modulated Force hydraulic disc brakes are reliable across a wide range of riding terrains.
Read lessTuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50-70mm stem so every rider gets direct and responsive steering.
The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.1”.
Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.
Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags.
Revised internal cable routing with a removable port under the bottom bracket shell making cabling easy and dropping frame weight.
Stiff, secure and avoids that dreaded bottom bracket creak.
Frameset | |
---|---|
Frame: | Camino Ti Frame V3 |
Fork: | Camino Carbon | Monocoque |
Headset: | FSA Orbit C-40-ACB |
Groupset | |
---|---|
Shifters: | SRAM Force eTap AXS | 12-speed |
Brakes: | SRAM Force eTap AXS | Hydraulic |
Rotors: | SRAM Centreline | 160mm (front), 160mm (rear) | 6-bolt |
Rear derailleur: | SRAM Force XPLR eTap AXS | Long cage | 12-speed |
Chainset: | SRAM Force 1 Wide | 172.5mm | 38t |
Cassette: | SRAM XG1271 | 10-44t | 12-speed |
Chain: | SRAM Force | 12-speed |
Bottom bracket: | SRAM DUB / T47 |
Wheelset | |
---|---|
Wheels: | Sonder Alpha 700c UK Made |
Tyres: | Goodyear Connector | 700c | 45 | TAN |
Tubes: | WTB | 700c x 38-45mm |
Finishing kit | |
---|---|
Handlebars: | Sonder Bomber | 56cm |
Stem: | Sonder Storc |
Seatpost: | Sonder Seatpost | 31.6mm |
Saddle: | Sonder Abode |
Tape: | Sonder Reels | Black |
Weight | |
---|---|
Frame: | XS: TBC S: 1.85kg; M: 1.95kg; L: 2.0kg; XL: 2.05kg; (Plus fork: 0.5kg) |
Build: | XS: TBC S: TBC M: TBC L: 9.7 kg; XL: TBC |
Pedals not included with full builds | |
Specifications are subject to change without notice |
Generally we recommend: X-Small: Riders between 4ft 10in and 5ft 3in (147-160cm) Small: Riders between 5ft 2in and 5ft 7in (158-173cm) Medium: Riders between 5ft 6in and 5ft 10in (170-177cm) Large: Riders between 5ft 9in and 6ft 2in (175-187cm) X-Large: Riders 6ft 2in and over (187cm +)
You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.
Size | X-Small | Small | Medium | Large | X-Large |
---|---|---|---|---|---|
ST - Seat tube | 430 | 460 | 490 | 520 | 550 |
TT - Top tube | 521.8 | 536.4 | 562.1 | 592.4 | 625.3 |
HT - Head tube | 130 | 150 | 170 | 190 | 205 |
HA - Head angle | 69 | 69 | 69 | 69 | 69 |
SA - Seat angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
CS - Chainstay | 434 | 434 | 434 | 434 | 434 |
BB - BB drop | 73 | 73 | 73 | 73 | 73 |
FO - Fork offset | 50 | 50 | 50 | 50 | 50 |
WB - Wheelbase | 1034.1 | 1050.8 | 1073 | 1105.2 | 1131 |
SO - Stand over | 465.4 | 765.9 | 773 | 812.4 | 815 |
RE - Reach | 370 | 380 | 395 | 420 | 440 |
SK - Stack | 545.2 | 563.9 | 582.6 | 601.2 | 615 |
Lightweight, durable and strong titanium frame.
Weight: S: 1.92 kg; M: 2.0 kg; L: 2.05 kg; XL: 2.16 kg (Plus fork: 0.5kg) |
Aeronautical grade titanium |
One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load) |
Seatpost diameter: 31.6mm |
Seat tube OD: 34.9mm |
Headset: IS42/28.6 | IS52/40 |
Disc brake only |
Mud guard and pannier rack mounts |
700 x 50mm or 650b x 2.2” tyre clearance. |
12mm bolt through axles at both ends. |
Hub spacing: 100x12mm front, 142x12mm rear |
