    Sonder Camino

    Camino Al GRX2Award-winning gravel bike

    €2.049 €2.149

    Aluminium Camino frame and carbon blade fork for multi-day expeditions, built with Shimano GRX2 groupset and class-leading components for round-the-world travel.
    Built to Order. Be Riding Next Week

    1

    Select Options

    • Size
      Please select an available size
    • Colour
      • Camino Al Frame [V4]
      • Camino Al Frame [V4]
      • Camino Al Frame [V4]
      Please select an available colour
    • Size:

    • Colour:

    • Customise and buy now. Deliveries from 1st June

    Capable, tough and quick aluminium adventure bike for exploring the world.

    At a glance

    • Shimano GRX 610 2x 12-speed groupset
    • Camino Carbon fork
    • Sonder Nova 700c UK made wheelset
    • 6061 aluminium frame

    Camino Al is built for those moments when the road turns into trail and the bridleway drops off into single track. Spritely and comfortable on the tarmac with enough in reserve to explore off-road trails, it transforms your riding experience and turns dead ends into possibilities.

    The Camino takes elements from cyclocross, gravel, and adventure race bikes. Its relaxed geometry is designed for long day comfort, with a longer wheelbase, slacker head angle and lengthened headtube for a more natural riding position.

    A low bottom bracket and short chainstays make it agile through the corners whilst the slackened head angle inspires confidence when descending.

    The aluminium frame is tough enough to take a knock or two, so you can lose yourself in the journey and push the technical envelope of your travel or even your commute. Effortlessly adaptable, the Camino is as proficient on your local trail as it is on the open road, with tyre clearance up to 700c x 50mm or 650b x 2.2" for that added traction and comfort on bumpier terrain.

    Responsive and exhilarating even when loaded up with luggage; rack, bottle cage and mud guard mounts give you the option to pack up and pedal off on a self-supported ride whenever the feeling takes you. Triple cage mount on the top of the downtube allows for 2 different mounting positions for the bottle cage for extra bag clearance or to fit a Lug-Kage.

    The 2 x 12 gearing, with a whopping 11 – 36t cassette, offers a gear range that is wide enough to cope with any terrain, opening up the alpine passes to mere mortals with enough at the top end to cruise up on the flat. 2x builds give a wide gear range and keep the jumps between gears small.

    Features

    Gravel geometry

    Tuned for long days with trail capabilty at its heart. The long wheelbase and 69° head angle make for a stable and confident ride, even over rough trails. Every size has been tuned for a 50mm-70mm stem so every rider gets direct and responsive steering.

    Wide open tyre clearance

    The Camino swallows huge tyres. Ride 700c x 50mm or 650b x 2.1” - that’s most mountain bike tyres covered.

    Carbon monocoque fork

    Lightweight, stiff and responsive. The Camino's full carbon fork gives direct steering and smooth braking. It's completely adventure ready with mudguard and rack mounts.

    Full rack, guard and expedition mounts

    Take anything anywhere. The Camino has mounts for everything you need - panniers, guards and extra mounts for adding cages to the forks. The downtube has triple cage mounts so you can set your bottle to be at a height for easy reach or lower to accommodate larger frame bags. Plus, there's mounts on the top tube for bolt-on bike luggage.

    Internal Cable Routing

    Clean lines and tidy cables thanks to fully guided internal routing. Cable port inserts keep things neat and can be capped off if you're running a wireless groupset. The Camino also has routing for a dropper seatpost.

    Universal Derailleur Hanger

    The SRAM Universal Derailleur Hangar (UDH) is widely available, so you can get rolling again sooner after any mid-ride mishaps.

    Build Spec
    Frameset
    Frame:Camino Al Frame | 6061 aluminium | Heat Treated
    Fork:Camino Carbon | Monocoque
    Headset:FSA Orbit C-40-ACB
    Groupset
    Shifters:Shimano GRX 610 | 12-speed | 2x
    Brakes:Shimano GRX 410 | Hydraulic | Flat Mount
    Rotors:Shimano RT66 | 160mm (front), 160mm (rear) | 6-bolt
    Rear derailleur:Shimano GRX 820 | 12-speed
    Front derailleur:Shimano GRX 820 | 12-speed | Braze-on
    Chainset:FSA Gossamer Pro AGX DM | 2x | 46-30t | 170mm
    Cassette:Shimano CS-HG710 | 11-36t | 12-speed
    Chain:KMC X12 Silver - Black | 12-speed
    Bottom bracket:FSA MegaExo Bottom Bracket | 68mm | 24mm
    Wheelset
    Wheels:Sonder Alpha I25 Gravel UK Made
    Tyres:Schwalbe G-One K-Guard Comp | 700-45 | Black [Tubeless Upgrade: Schwalbe G-One Performance TLE | 700-45 | Bronze]
    Tubes:WTB | 700c x 38-45mm
    Finishing kit
    Handlebars:Sonder Bomber | 56cm
    Stem:Sonder Storc
    Seatpost:Sonder Seatpost | 27.2mm
    Saddle:Sonder Abode
    Tape:Sonder Reels | Black
    Weight
    Frame:XS: 1.84kg; S: 1.94kg; M: 2kg; L: 2.05kg; XL: 2.1kg; (Plus fork: 0.5kg)
    Build:XS: 10.4kg; S: 10.5kg; M: 10.56kg; L: 10.61kg; XL: 10.66kg;
    Pedals not included with full builds
    Specifications are subject to change without notice
    Geometry and Sizing

    Sizing

    You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the toptube to your crotch this will give you enough seatpost adjustment to find your optimum saddle height.

    SizeX-SmallSmallMediumLargeX-Large
    Rider height

    4ft 10in and 5ft 3in

    (147-160cm)

    5ft 2in and 5ft 7in

    (158-173cm)

    5ft 6in and 5ft 10in

    (170-177cm)

    5ft 9in and 6ft 2in

    (175-187cm)

    6ft 2in and over

    (187cm +)

    ST - Seat tube430460490520550
    TT - Top tube521.8 (Curved)536.4562.1592.4625.3
    HT - Head tube130150170190205
    HA - Head angle6969696969
    AC - Axle to Crown395395395395395
    SA - Seat angle74.574.5747473
    CS - Chainstay434434434434434
    BB - BB drop7373737373
    FO - Fork offset5050505050
    WB - Wheelbase1034.11050.810731105.21131
    SO - Stand over695.4765.9773812.4815
    RE - Reach370380395420440
    SK - Stack545.2563.9582.6601.2615

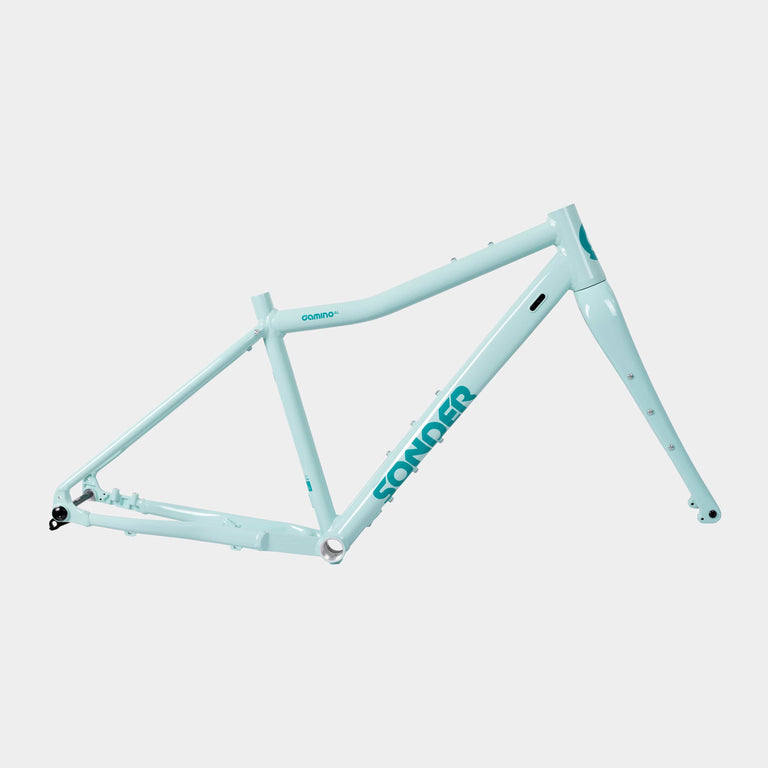

    Frame Spec

    Lightweight, durable and strong aluminium gravel bike frame.

    Weight: S: 1.88 kg; M: 1.98 kg; L: 2.0 kg; XL: 2.05 kg; (Plus fork: 0.5kg)
    6061 Aluminium, new profiled downtube and UDH hanger
    One piece carbon monocoque fork (Cage mounts on carbon fork designed for 2kg maximum load)
    Toptube bottle/bag bosses and enclosed cable ports
    Seatpost diameter: 27.2mm
    Seat tube OD 31.8mm
    Headset: IS42/28.6 | IS52/40
    Disk brake only
    Mudguard and pannier rack mounts
    700 x 50mm or 650b x 2.2” tyre clearance
    12mm bolt through axles at both ends

    Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on +44 1773 417006.
