Broken Road Frame

expedition bike frame

€1.949,00

At a glance
  • Hard tail e...

Broken Road Frame

Photos for illustration purposes. Please check the bike spec for detailed component listings.

Broken Road Frame

expedition bike frame

€1.949

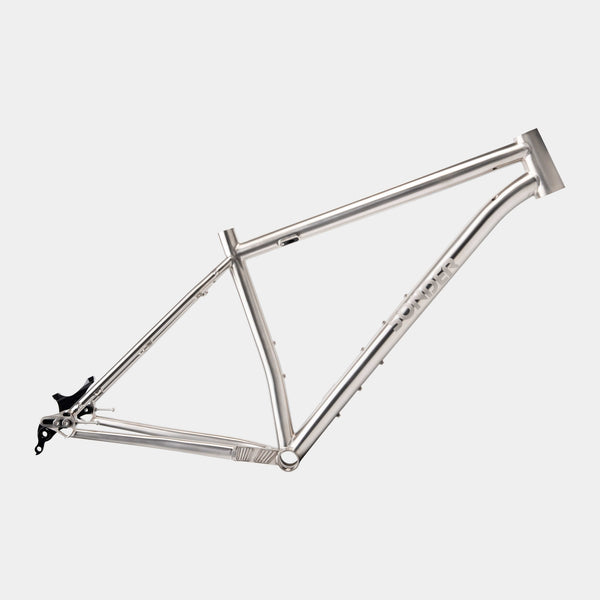

Titanium multi-day expedition mountain bike frame. A titanium mountain bike frame specifically for big mountains and multi-day expeditions

Read more

Read more

Need help choosing a bike or technical advice?


  • Open a Live Chat
  • Pop into a store 7 days a week
  • Call a Sonder Customer Hero on 01773 417006
  • Email us at support@alpkit.com


Buy Now. Deliveries from 5 February.

Broken Road Frame

expedition bike frame

€1.949

Titanium multi-day expedition mountain bike frame. A titanium mountain bike frame specifically for big mountains and multi-day expeditions

Buy Now. Deliveries from 5 February.

  • Please select

  • Customise

    Every Sonder bike is built to order so tell us exactly how you want it. Make any changes you want from the standard build and when you’re done, just hit “Add to bag” at the bottom of the page.

    Accessories

  • Headset

    • No Headset

    • No Headset
    • FSA Orbit C-40-ACB Headset / 7.8mm Spacer

      +€34,99

    • FSA Orbit C-40-ACB Headset / 7.8mm Spacer
Initial Price
€1.949
Frame
Broken Road Frame
Size
Extras
€0
Total Price
€1.949
Description
At a glance
  • Hard tail expedition mountain bike
  • Hand welded titanium frame
  • Stealth dropper post routing
  • Rear rack mounts
  • Adjustable sliding dropouts allow 27.5+, 29 in or large section 700c wheels and either singlespeed, derailleur or internal hub gears
  • Clinically created geometries enhance riding and load capacity
  • Titanium fork, short travel suspension or fat front wheel compatibility

The off-road adventurer. The one who, without engines and cacophony, can explore the world in a remarkably unique way. The ability to travel further, faster and with less gives the bikepacker a profound advantage. When you catch nature off guard, what will you see?

Finally, an off-road adventure bike which transforms the way you ride. For microadventures, Broken Road will be an indispensable companion. Plush 27.5+ tyres will rapidly steam roll over everything with a corner grip that will make a muddy WRT a breeze.

..Read more

The slackened angle gives the perfect balance of comfortable uphill grinding and exciting downhill whooping. Longer wheelbase wonderfully balances precision and handling.

Wide, ovalised top tube gives vertical compliance but lateral stiffness -this also makes it easier to keep your luggage in place when riding over rough ground.

Broken Road’s titanium frame is designed for optimum use with 27.5/27.5+ wheels but can be swapped out for 29ers to help you tackle any journey that you thrust upon it. The bigger, fatter wheels go over obstacles better, hold momentum and give enhanced control due to the angling.

Read less
Features

Elegant titanium tubing

Climb aboard and experience the famed resilience of titanium. No other material is as durable, lasts as long, or looks as good, and Broken Road’s aeronautical grade titanium tubing isolates the rider from shock, gives an efficient ride, and maximizes storage potential. Thanks to the low standover height and rider clearance, you won’t have to make any compromises when riding over rough terrain either.

27.5+ ready

Designed for optimum use with 27.5+ (semi-fat) wheels which help you to tackle any adventure. The plus-sized wheels cruise over obstacles, hold momentum, and give enhanced control thanks to a larger contact patch.

Trail bike geometry

The long wheelbase combines precision and control, giving you the flexibility to adjust riding position easily. The frame is designed with a relaxed head angle, creating the perfect set up for eating up the miles over any surface, and striking the balance between comfortable uphill grinding and hair-raising downhill whooping.

Adjustable sliding dropouts

Adjustable sliding dropouts let you lengthen your Broken Road for eating up the miles or shorten it for the technical, steep trails, and allow for either 27.5+ or 29” wheels, and either singlespeed, derailleur, or internal hub gears.

Rear rack mount lugs

Rack mounts allow you to load up with panniers.

Build Spec
Geometry and Sizing

Sizing

It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the top tube to your crotch this will give you enough seat post adjustment to find your optimum saddle height.

Size recommendations

Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
X-Large: Riders of 6ft 2in + (187cm)

Size recommendations

Small: Riders between 5ft 2in and 5ft 7in (157-170cm)
Medium: Riders between 5ft 6in and 5ft 10in (167-177cm)
Large: Riders between 5ft 9in and 6ft 2in (175-187cm)
X-Large: Riders of 6ft 2in + (187cm)

Broken Road

All measurements are in mm unless specified.

Size Small Medium Large X-Large
ST - Seat tube 410 440 465 495
ETT - Effective top tube 588.9 613.1 642.4 671.5
TT - Top tube 588.9 631.1 642.4 671.5
HT - Head tube 105 120 135 150
HA - Head angle 67 67 67 67
SA - Seat angle 73 73 73 73
CS - Chainstay 440 - 460 (adjustable) 440 - 460 (adjustable) 440 - 460 (adjustable) 440 - 460 (adjustable)
BB - BB drop 60 60 60 60
FO - Fork offset 44-51 44-51 44-51 44-51
WB - Wheelbase 1116.6 (measured at 440mm) 1142.2 (measured at 440mm) 1173.2 (measured at 440mm) 1204 (measured at 440mm)
RE - Reach 410 430 455 480
SK - Stack 585 598.8 612.6 626.4
Frame Spec

Titanium is lightweight, strong and durable make it an ideal construction material for bike frames. No other material is as durable, lasts as long, or looks as good. Our frames are handmade and come with a 10 year frame warranty

Weight: S: 2.05kg; M: 2.16kg; L: 2.23kg; XL: 2.3kg
3Al/ 2.5V Aeronautical Grade Hand Welded Titanium Frame
148 mm boost thru axle standard
Post mount brake on chainstay, 160mm rotor as standard
Triple bottle cage mounts on top and bottom of downtube
Pannier rack mounts
Internal cable routing for rear brake, rear mech and dropper seatpost.
Not compatible with a front mech
Headset: IS42/28.6 | IS52/40 (not included)
Seatpost: 31.6 mm
Seat tube OD: 34.9 mm
73 mm BSA BB standard
Max tyre width on 29": 2.6"
Max tyre width on 27.5": 3"
Chainline: 52mm
Max chainring size: 36 tooth
