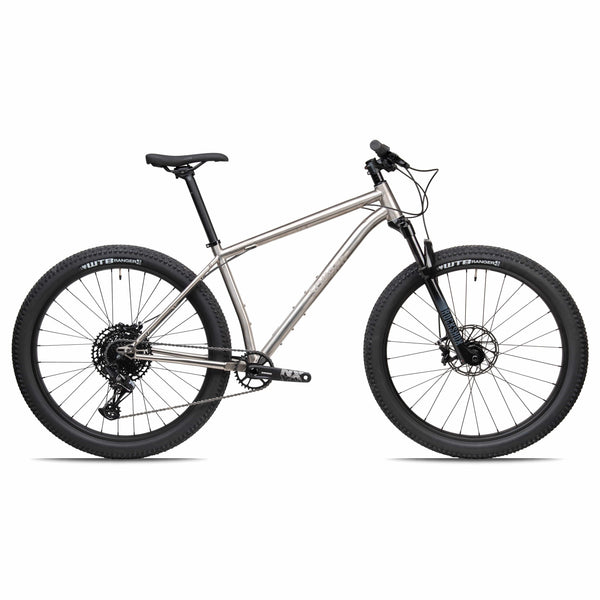

    Sonder Broken Road

    Broken Road Ti DeoreWilderness trail bike

    €2.949

    Multi-day titanium expedition mountain bike with the Shimano Deore 1x12 groupset and Rockshox Recon forks. This is designed for big mountain days and fully loaded adventures
    Built to Order. Be Riding 17 August.

    1

    Select Options

      Multi-day titanium expedition hardtail designed for big mountain days and fully loaded adventures.

      Plush 29er tyres will rapidly steam roll over everything with a corner grip that will make a muddy WRT a breeze.

      The slackened angle gives the perfect balance of comfortable uphill grinding and exciting downhill whooping. Longer wheelbase wonderfully balances precision and handling.

      Wide, ovalised top tube gives vertical compliance but lateral stiffness -this also makes it easier to keep your luggage in place when riding over rough ground.

      Broken Road’s titanium frame is designed for optimum use with 29" wheels but can be swapped out for 27.5+ to help you tackle any journey that you thrust upon it. The bigger, fatter wheels go over obstacles better, hold momentum and give enhanced control due to the angling.

      At a glance

      • Shimano Deore M6100 12-speed groupset
      • Rockshox Recon Silver RL fork
      • Sonder Nova 29" UK Made wheelset
      • Hand-welded titanium frame

      Why Deore

      Shimano drivetrains are designed, engineered and manufactured to work as complete drivetrain systems. Shimano's new microspline hub means that you can run a 10 tooth cassette for a huge gear range. The new EV shifters and brakes provide loads of adjustment to get the perfect position as well as a rock-solid feel on the bars.

      Features

      Elegant titanium tubing

      Climb aboard and experience the famed resilience of titanium. No other material is as durable, lasts as long, or looks as good, and Broken Road’s aeronautical grade titanium tubing isolates the rider from shock, gives an efficient ride, and maximizes storage potential. Thanks to the low standover height and rider clearance, you won’t have to make any compromises when riding over rough terrain either.

      27.5+ ready

      Designed for optimum use with 27.5+ (semi-fat) wheels which help you to tackle any adventure. The plus-sized wheels cruise over obstacles, hold momentum, and give enhanced control thanks to a larger contact patch.

      Trail bike geometry

      The long wheelbase combines precision and control, giving you the flexibility to adjust riding position easily. The frame is designed with a relaxed head angle, creating the perfect set up for eating up the miles over any surface, and striking the balance between comfortable uphill grinding and hair-raising downhill whooping.

      Adjustable sliding dropouts

      Adjustable sliding dropouts let you lengthen your Broken Road for eating up the miles or shorten it for the technical, steep trails, and allow for either 27.5+ or 29” wheels, and either singlespeed, derailleur, or internal hub gears.

      Rear rack mount lugs

      Rack mounts allow you to load up with panniers.

      Build Spec
      Frameset
      Frame:Broken Road Frame | Titanium
      Fork:RockShox Recon Silver RL | 100mm (travel)
      Headset:FSA Orbit C-40-ACB
      Groupset
      Shifters:Shimano Deore M6100 | 1x | 12-speed
      Brakes:Shimano Deore M6100 | Hydraulic | Post mount
      Rotors:Shimano RT66 | 180mm (front), 160mm (rear) | 6-bolt
      Rear derailleur:Shimano Deore M6100 | Long cage | 12-speed
      Chainset:Shimano Deore M6100 | 170mm | 32t
      Cassette:Shimano CS-M6100 | 10-51t | 12-speed
      Chain:KMC X12 Silver - Black | 12-speed
      Bottom bracket:Shimano BB52 | BSA
      Wheelset
      Wheels:Sonder Nova I25 Trail UK Made
      Tyres:Schwalbe Nobby | Comp | Black | 29x2.4
      Tubes:WTB | 29 x 2.2-2.4"
      Finishing kit
      Handlebars:Sonder Aspect Riser | 780mm
      Stem:Sonder Piskie
      Seatpost:Sonder Seatpost | 31.6mm
      Saddle:Sonder Abode
      Grips:Sonder Clutch | Black
      Weight
      Frame:S: 2.05kg; M: 2.1kg; L: 2.2kg; XL: 2.3kg;
      Build:S: TBC M: TBC L: TBC XL: TBC
      Pedals not included with full builds
      Specifications are subject to change without notice
      Geometry and Sizing

      Sizing

      It is important to get the right size bike, if the bike fits it will be faster, more comfortable, and easier to handle. You can also take into consideration the standover height to ensure you pick a bike that will be a good fit. If you measure your inside leg and ensure there is a minimum of an inch from the top tube to your crotch this will give you enough seat post adjustment to find your optimum saddle height.





      SizeSmallMediumLargeX-Large
      Rider height

      5ft 2in - 5ft 7in

      (158-173cm)

      5ft 6in - 5ft 10in

      (170-177cm)

      5ft 9in - 6ft 2in

      (175-187cm)

      6ft 2in +

      (187cm +)

      ST - Seat tube410440465495
      ETT - Effective top tube589613642672
      TT - Top tube556579608637
      HT - Head tube105120135150
      HA - Head angle67676767
      SA - Seat angle73737373
      CS - Chainstay440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)440 - 460 (adjustable)
      BB - BB drop60606060
      FO - Fork offset44-5144-5144-5144-51
      WB - Wheelbase1117 (measured at 440mm)1142 (measured at 440mm)1173 (measured at 440mm)1204 (measured at 440mm)
      SO - Standover735767792808
      RE - Reach410430455480
      SK - Stack585599613626
      Frame Spec

      Titanium is lightweight, strong and durable make it an ideal construction material for bike frames. No other material is as durable, lasts as long, or looks as good. Our frames are handmade and come with a 10 year frame warranty

      Weight: S: 2.05kg; M: 2.16kg; L: 2.23kg; XL: 2.3kg
      3Al/ 2.5V Aeronautical Grade Hand Welded Titanium Frame
      148 mm boost thru axle standard
      Post mount brake on chainstay, 160mm rotor as standard
      Triple bottle cage mounts on top and bottom of downtube
      Pannier rack mounts
      Internal cable routing for rear brake, rear mech and dropper seatpost.
      Not compatible with a front mech
      Headset: IS42/28.6 | IS52/40
      Seatpost: 31.6 mm
      Seat tube OD: 34.9 mm
      73 mm BSA BB standard
      Max tyre width on 29": 2.6"
      Max tyre width on 27.5": 3"
      Chainline: 52mm
      Max chainring size: 36 tooth

      Your actual build date will depend on additional components you specify and from receipt of full payment. For any queries contact our Sonder team on +44 1773 417006.
